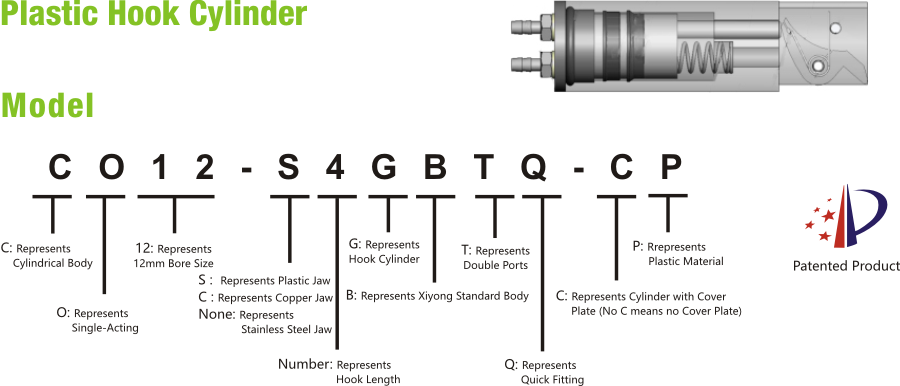

Product Model Reference：
Product Specifications：
| Model | CO12-5GB-P |
| Type | Piston Cylinder |
| Cylinder Body Shape | Cylindrical |
| Action Mode | Single-Acting |
| Outer Diameter(mm) | 16 |
| Bore Size(mm) | 12 |
| Hook Length(mm) | 5 |
| Cylinder Type | Hook Type |
| Cylinder Body Type | Xiyong Cylinder Standard Body |
| Port | Single Port（φ3/4mm） |
| Quick Fitting | None |
| Cover Plate | None |
| Cylinder Body Material | Plastic |
| Pressure Range | 0.15～1.0MPA |
| Operating Temperature | 0℃～70℃ |

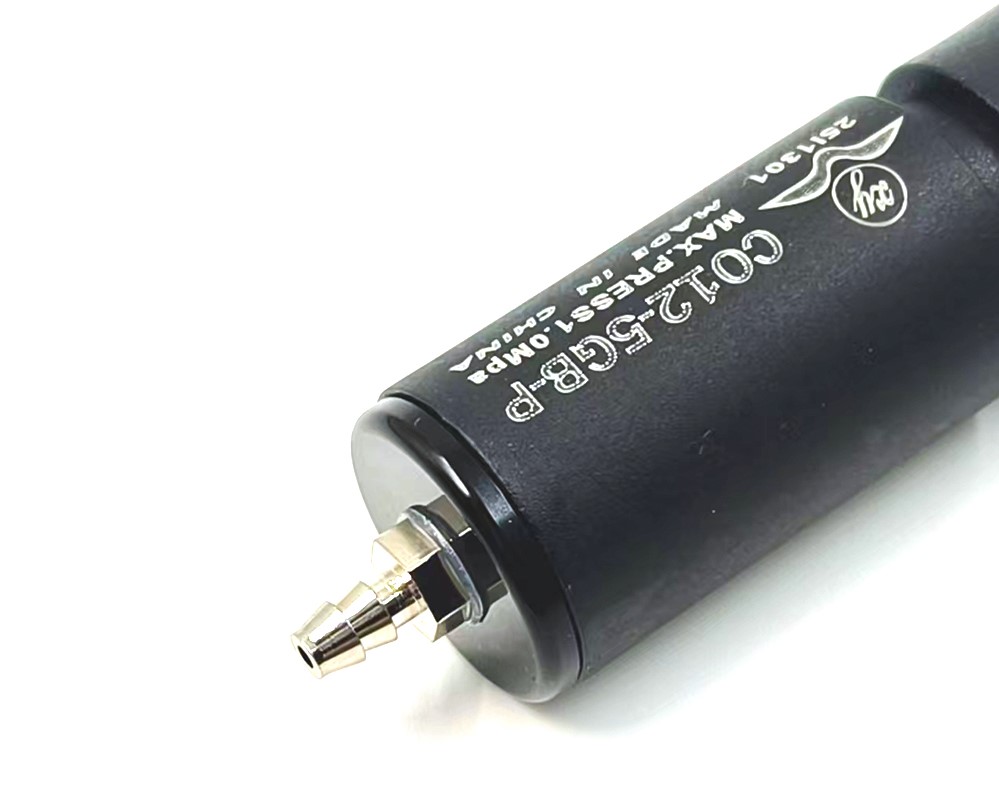

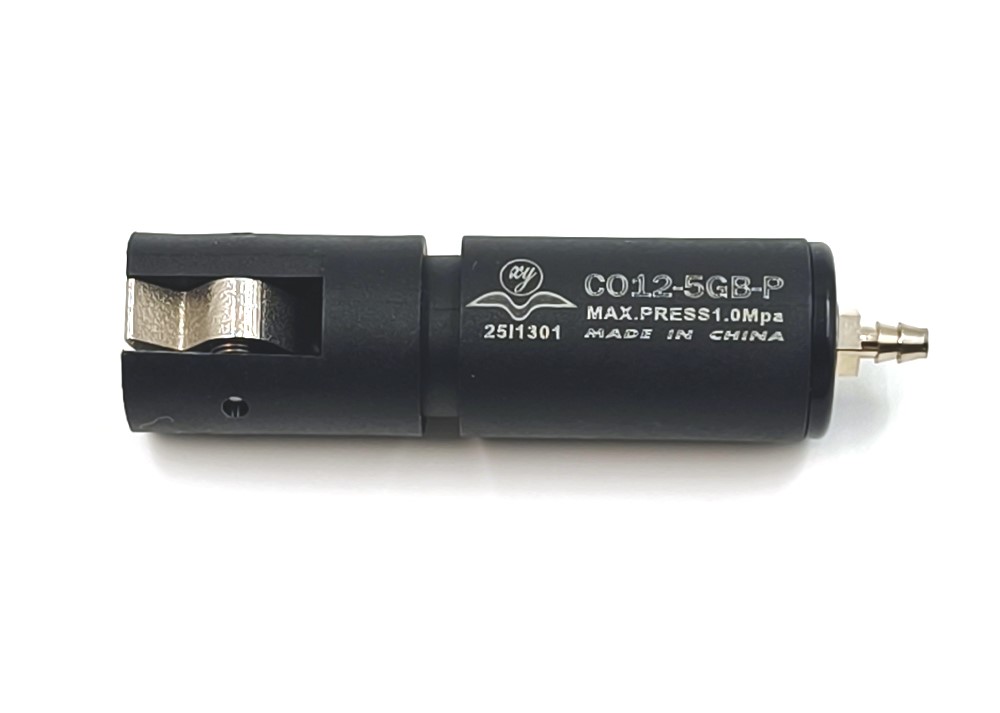

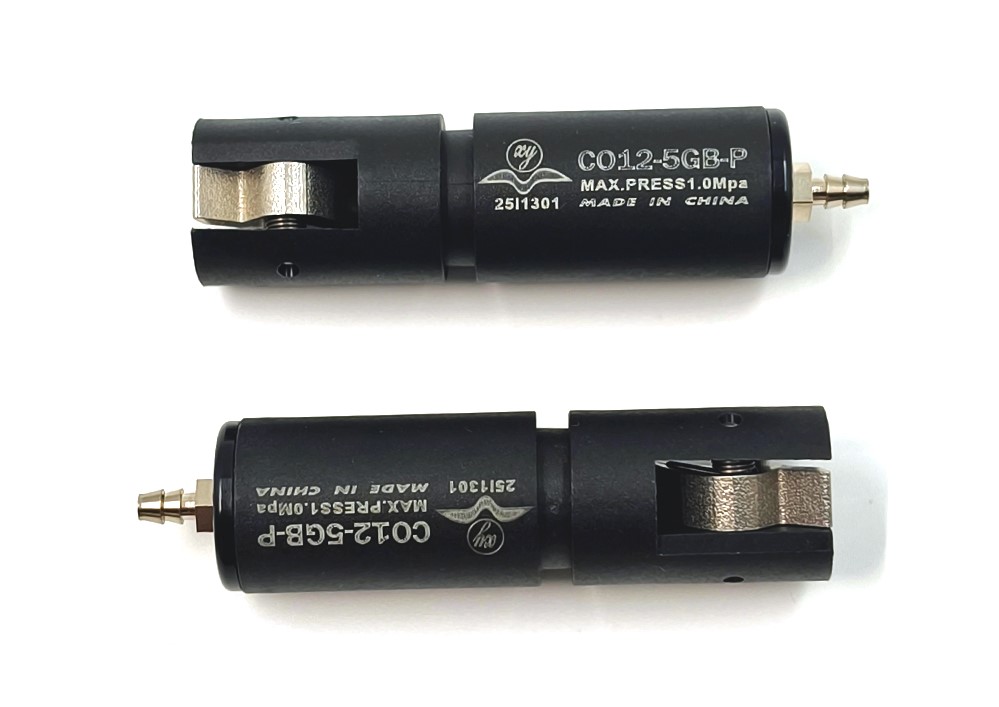

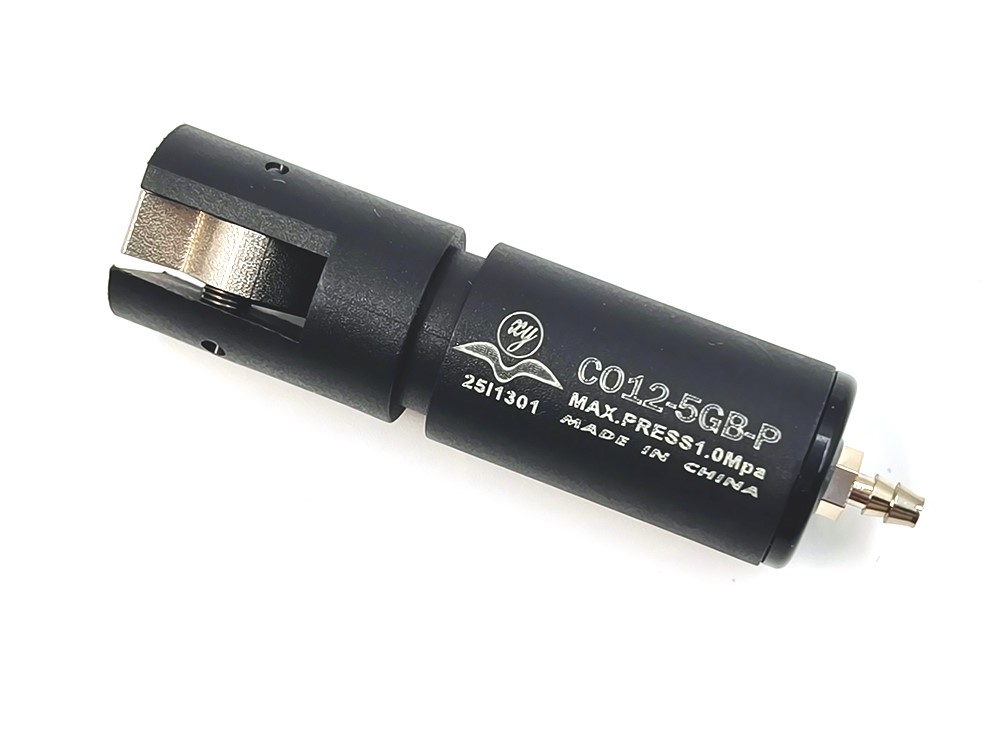

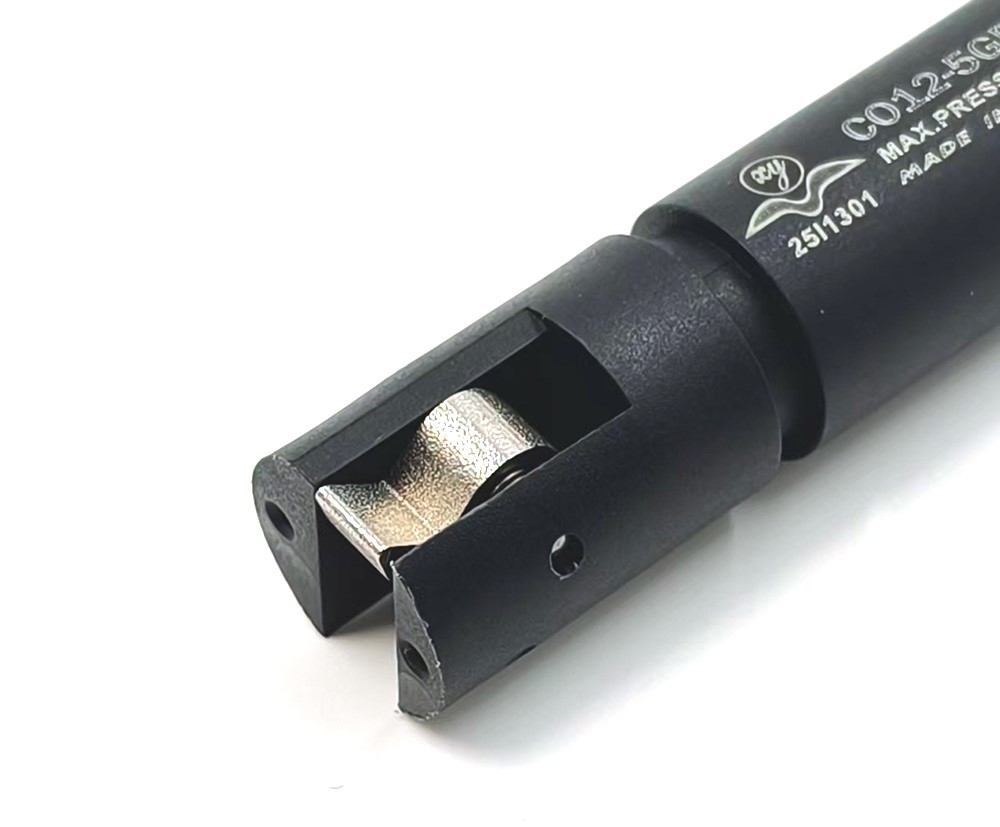

Product Image：
Tag：Cylinder
