| Model | CO12-8GZQ-A1 |
| Type | |
| Cylinder Body Shape | |
| Action Mode | |
| Outer Diameter(mm) | 16 |
| Bore Size(mm) | 12 |
| Hook Length(mm) | 8 |
| Cylinder Type | |
| Cylinder Body Type | Xiyong Cylinder Cylindrical Body |
| Port | Single Port（φ4mm） |
| Quick Fitting | Yes |
| Cover Plate | None |
| Cylinder Body Material | Aluminum (Black Anodized) |
| Pressure Range | 0.15～1.0MPA |
| Operating Temperature | 0℃～70℃ |

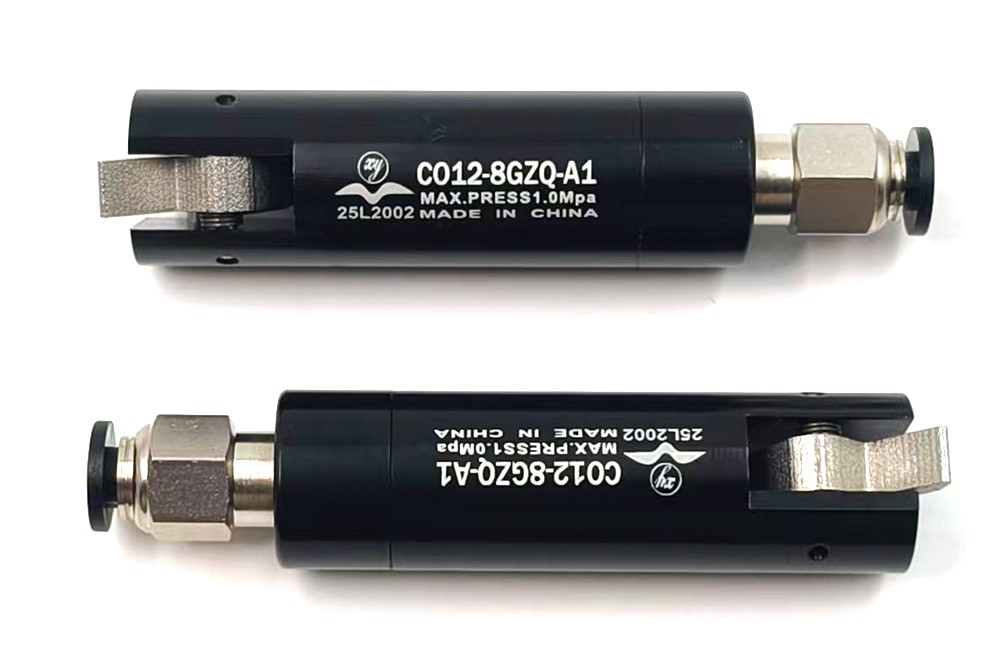

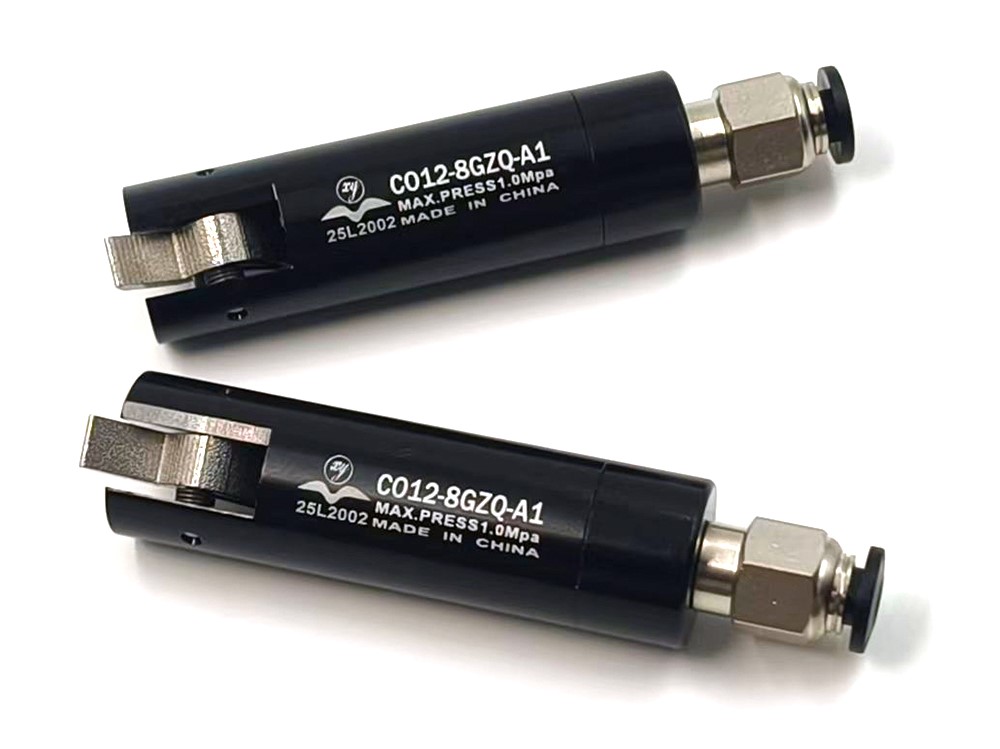

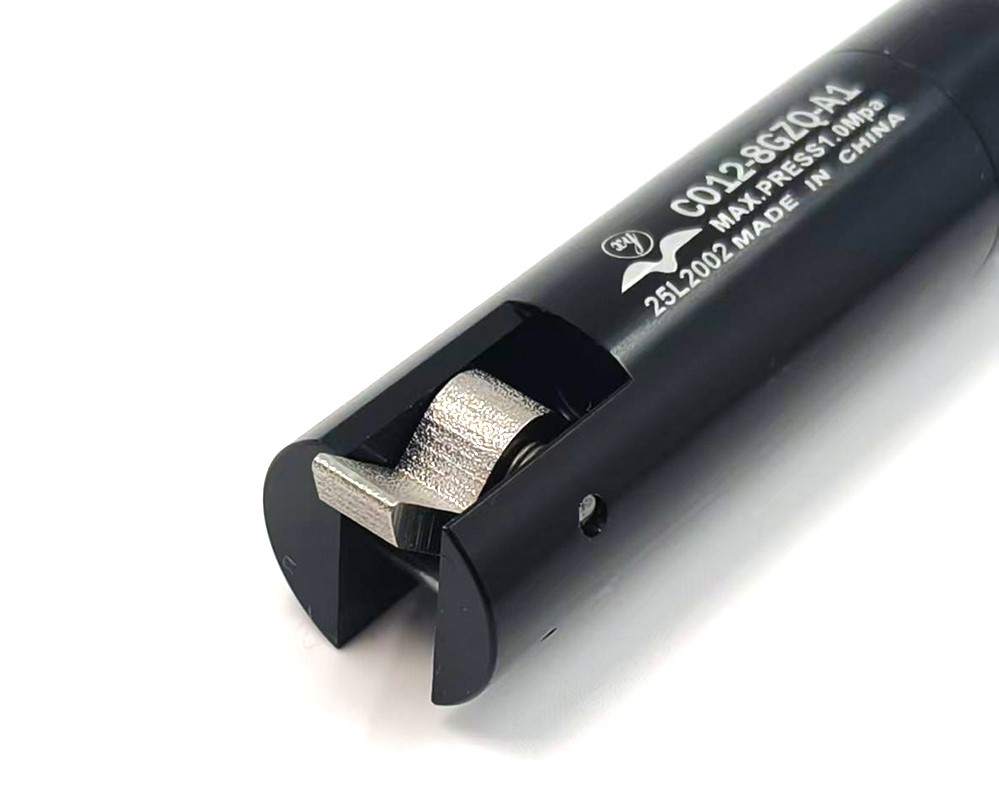

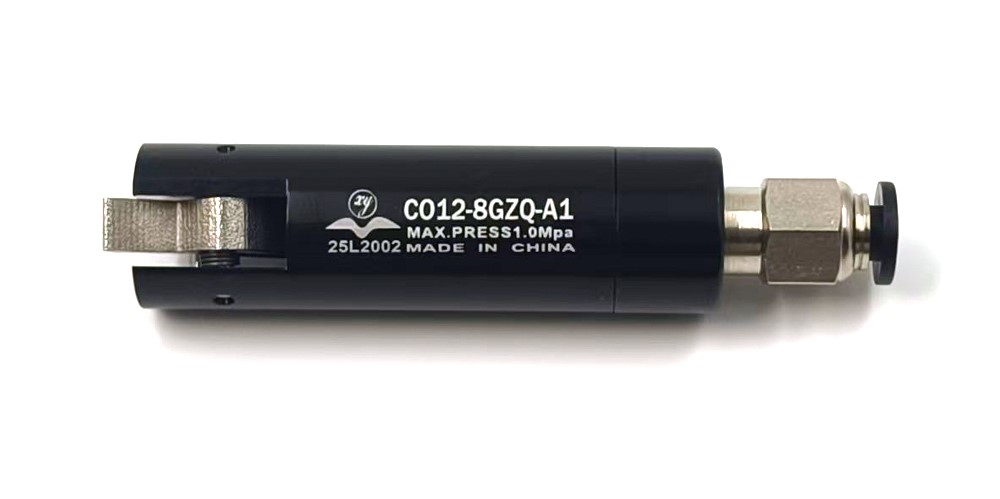

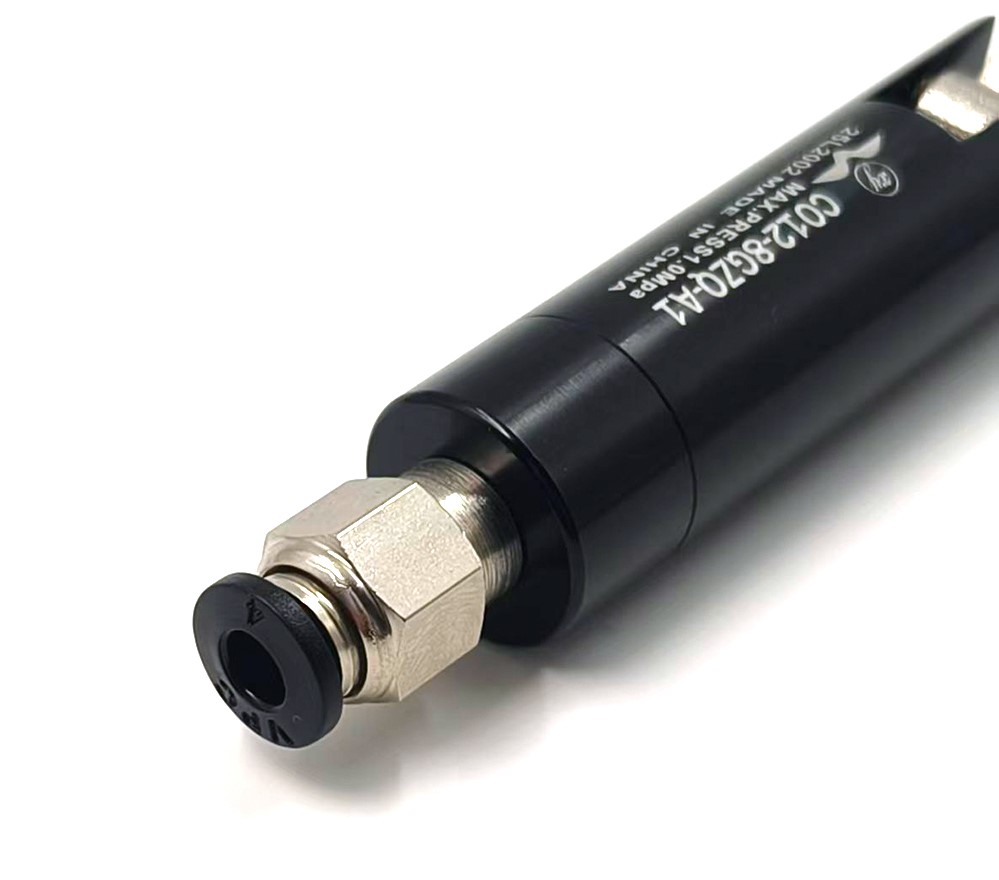

Product Image：
