Product Model Reference：
Product Specifications：
| Model | CO22-6GB-CA |
| Type | Piston Cylinder |
| Cylinder Body Shape | Cylindrical |
| Action Mode | Single-Acting |
| Outer Diameter(mm) | Max Diameter 29, Min Diameter 27.5 |
| Bore Size(mm) | 22 |
| Hook Length(mm) | 6 |
| Cylinder Type | Hook Type |
| Cylinder Body Type | Xiyong Cylinder Standard Body |
| Port | Single Port (Φ3/4mm) |
| Quick Fitting | None |
| Cover Plate | Yes |
| Cylinder Body Material | Aluminum (Black Anodized) |
| Pressure Range | 0.15～1.0MPA |
| Operating Temperature | 0℃～70℃ |

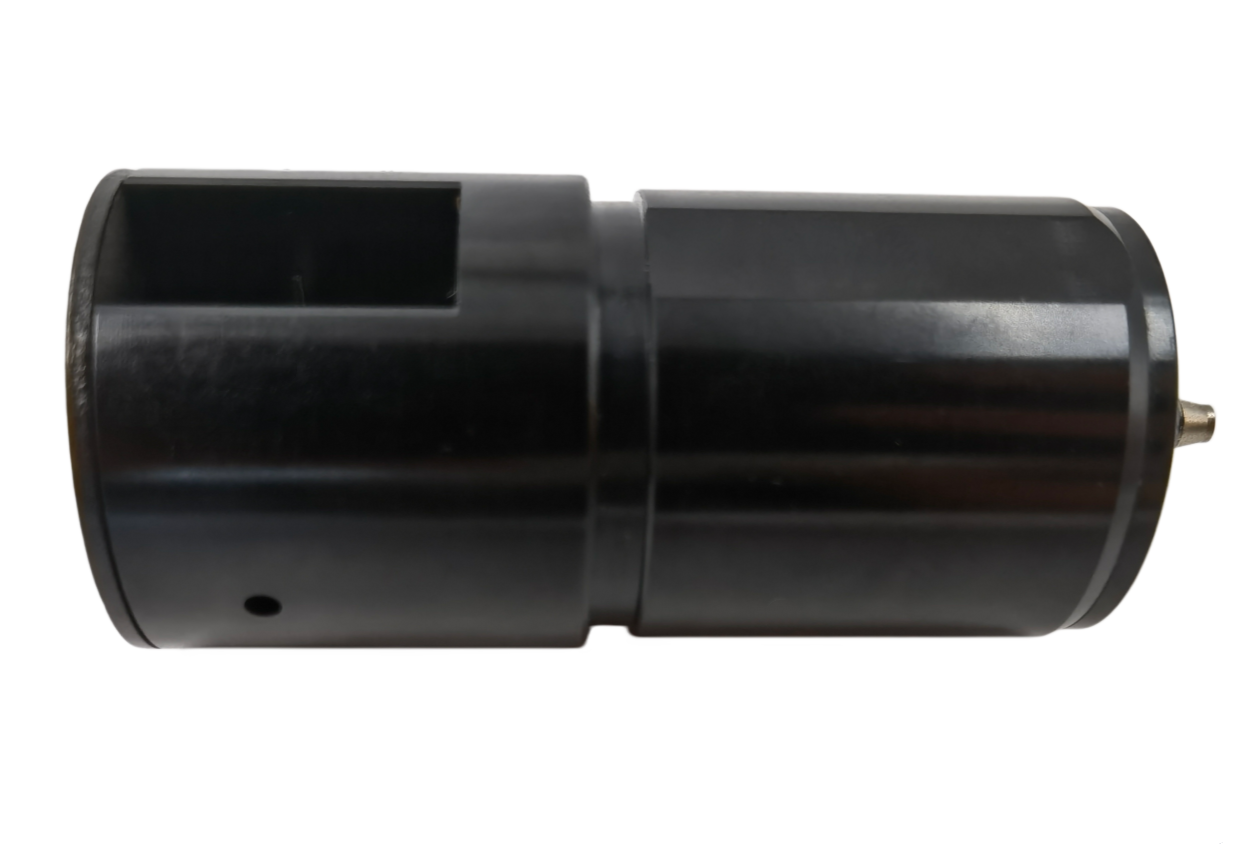

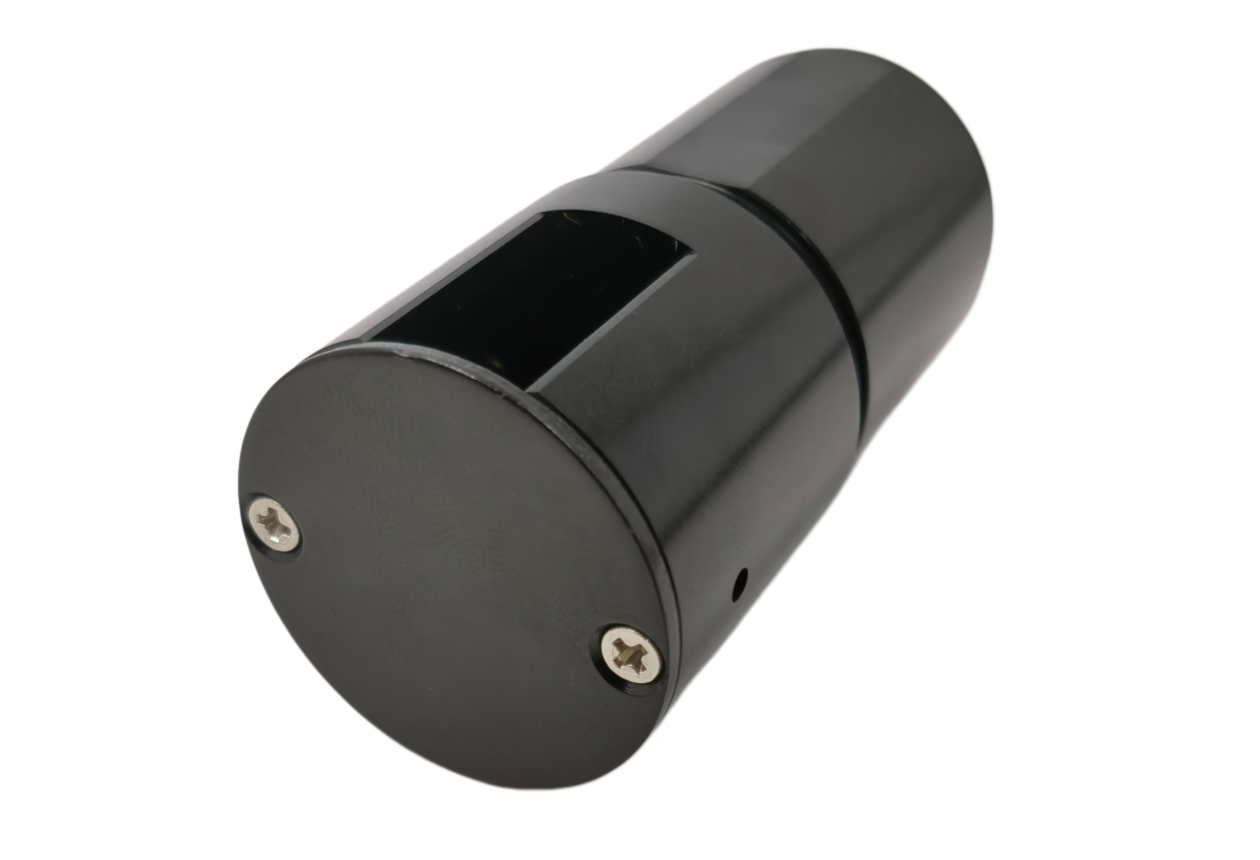

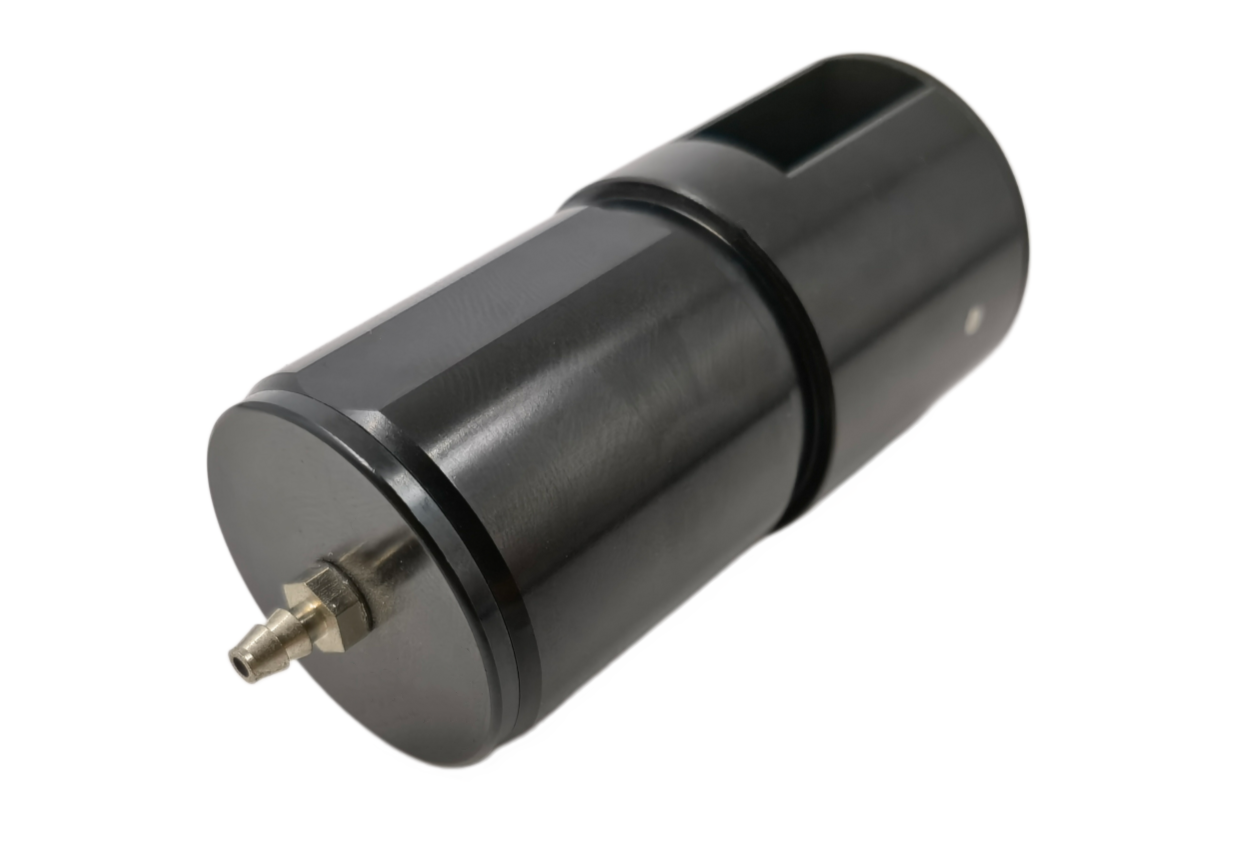

Product Image：
