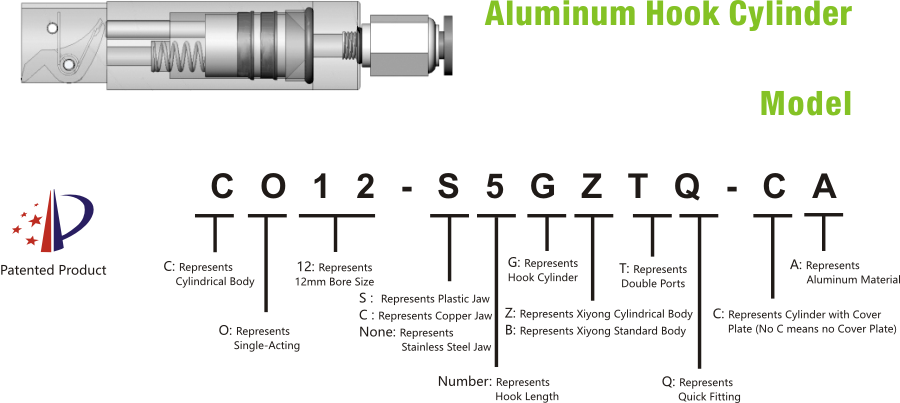

Product Model Reference：
Product Specifications：
| Model | CO12-10GZQ-A |
| Type | Piston Cylinder |
| Cylinder Body Shape | Cylindrical |
| Action Mode | Single-Acting |
| Outer Diameter(mm) | 16 |
| Bore Size(mm) | 12 |
| Hook Length（mm） | 10 |
| Cylinder Type | Hook Type |
| Cylinder Body Type | Xiyong Cylinder Cylindrical Body |
| Port | Single Port （∮3/4mm） |
| Quick Fitting | None |
| Cover Plate | None |
| Cylinder Body Material | Aluminum (Black Anodized) |
| Pressure Range | 0.15～1.0MPA |
| Operating Temperature | 0℃～70℃ |

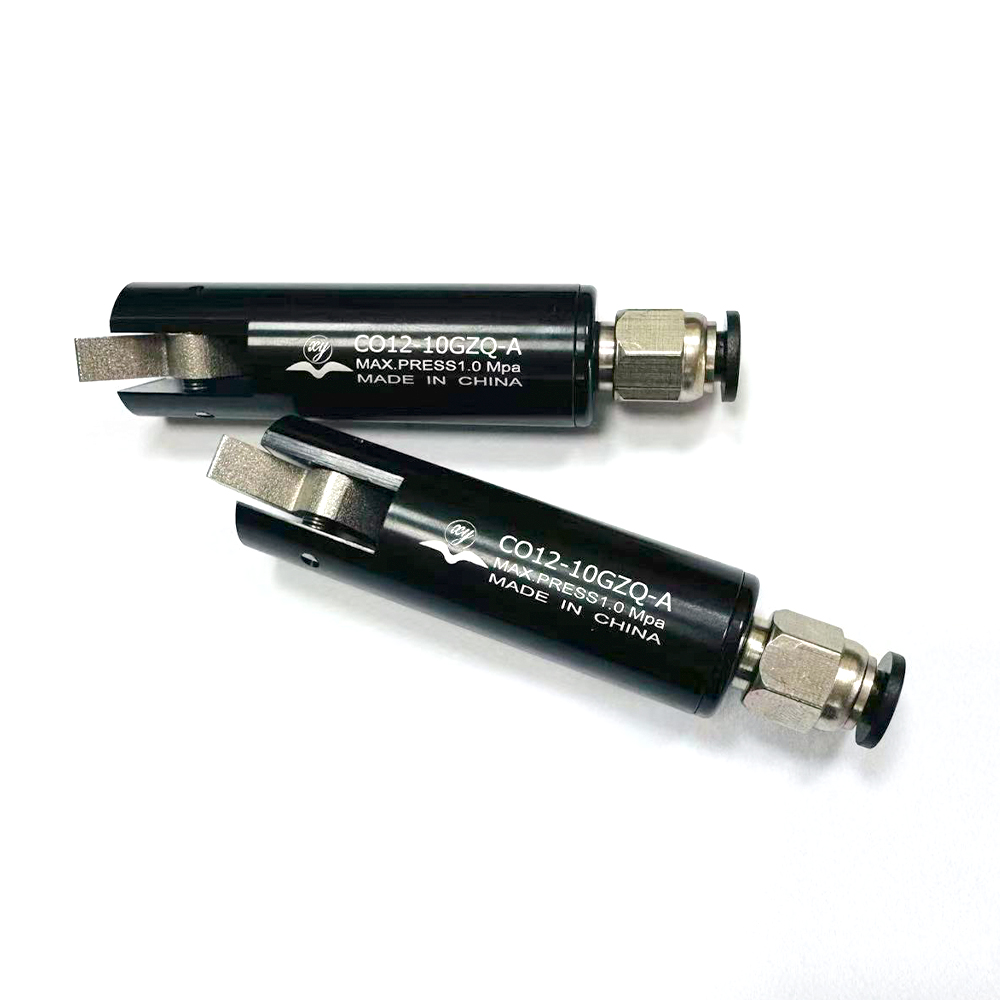

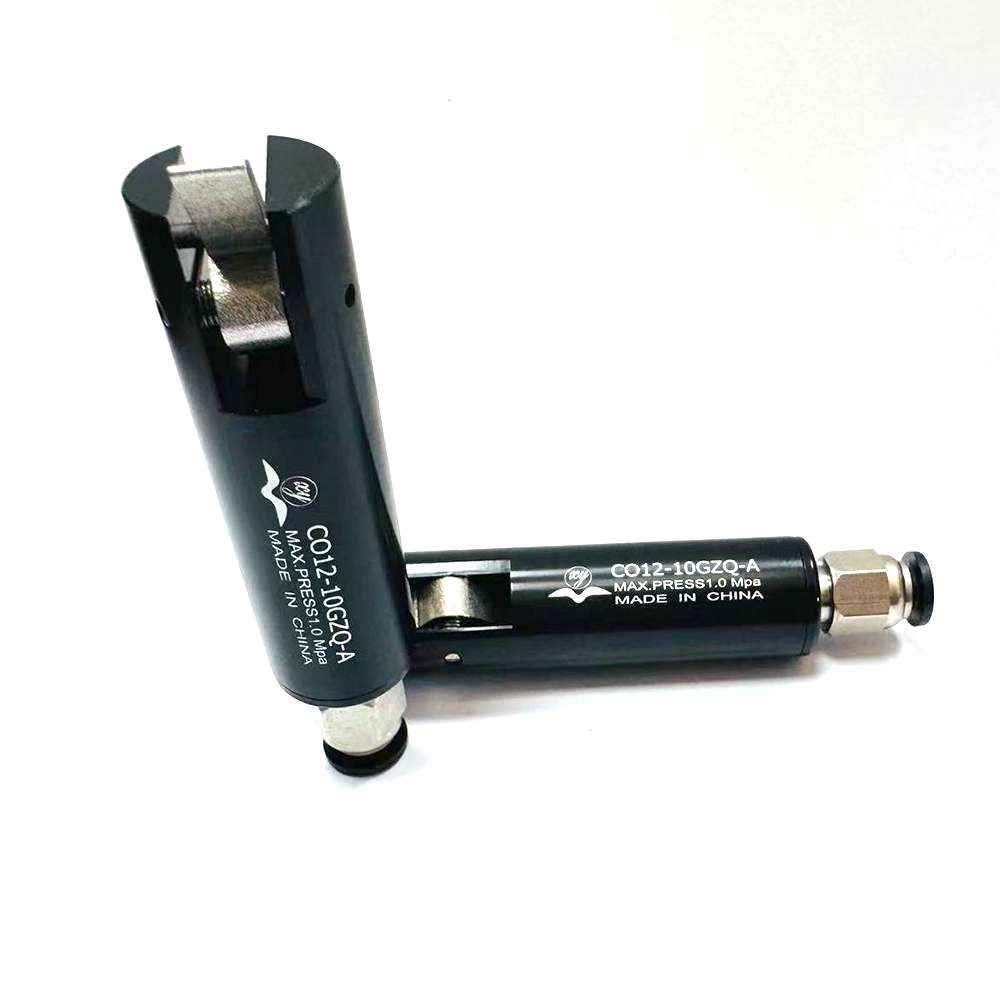

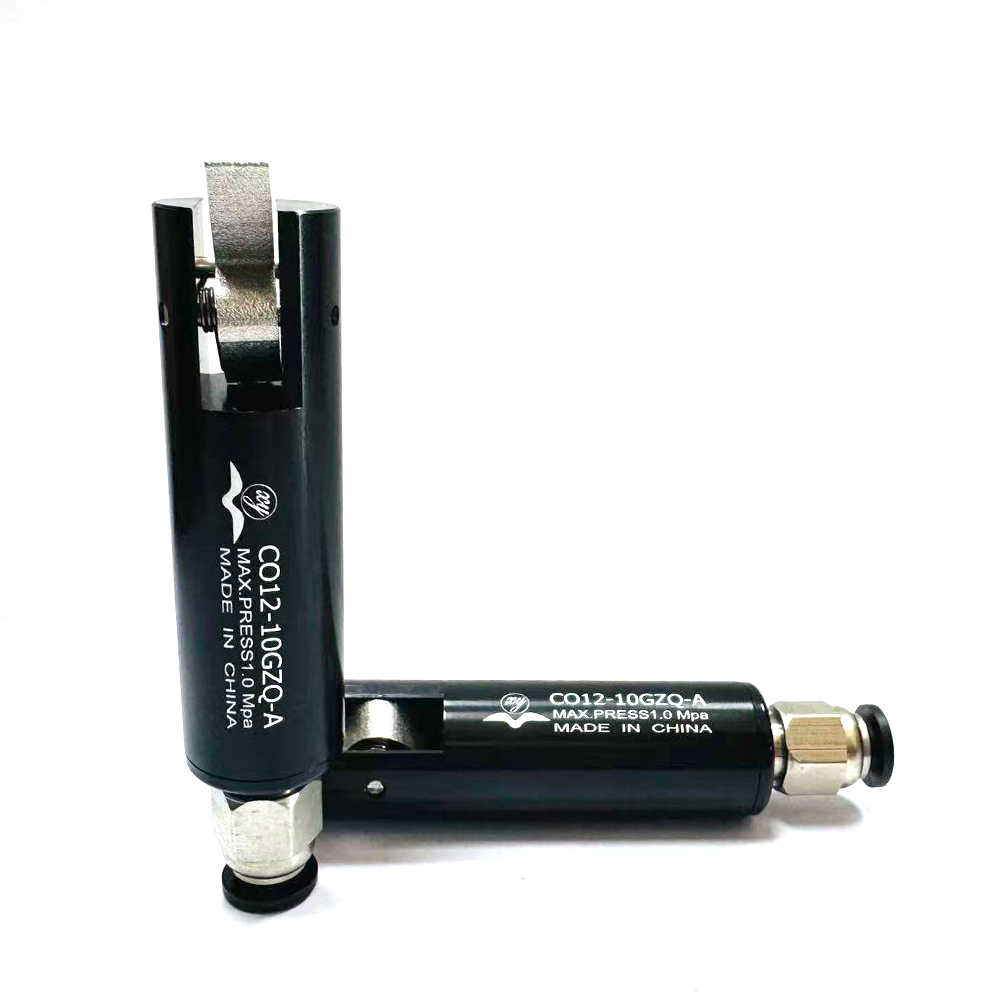

Product Image：
Disclaimer: This article is from a submission and does not represent the position of our website. If reproduced, please indicate the source:"https://www.shxiyong.com/product/aluminum-hook-cylinder-s306.html" If the content on this website unintentionally infringes on your company's copyright, please write to us and we will promptly handle and reply.

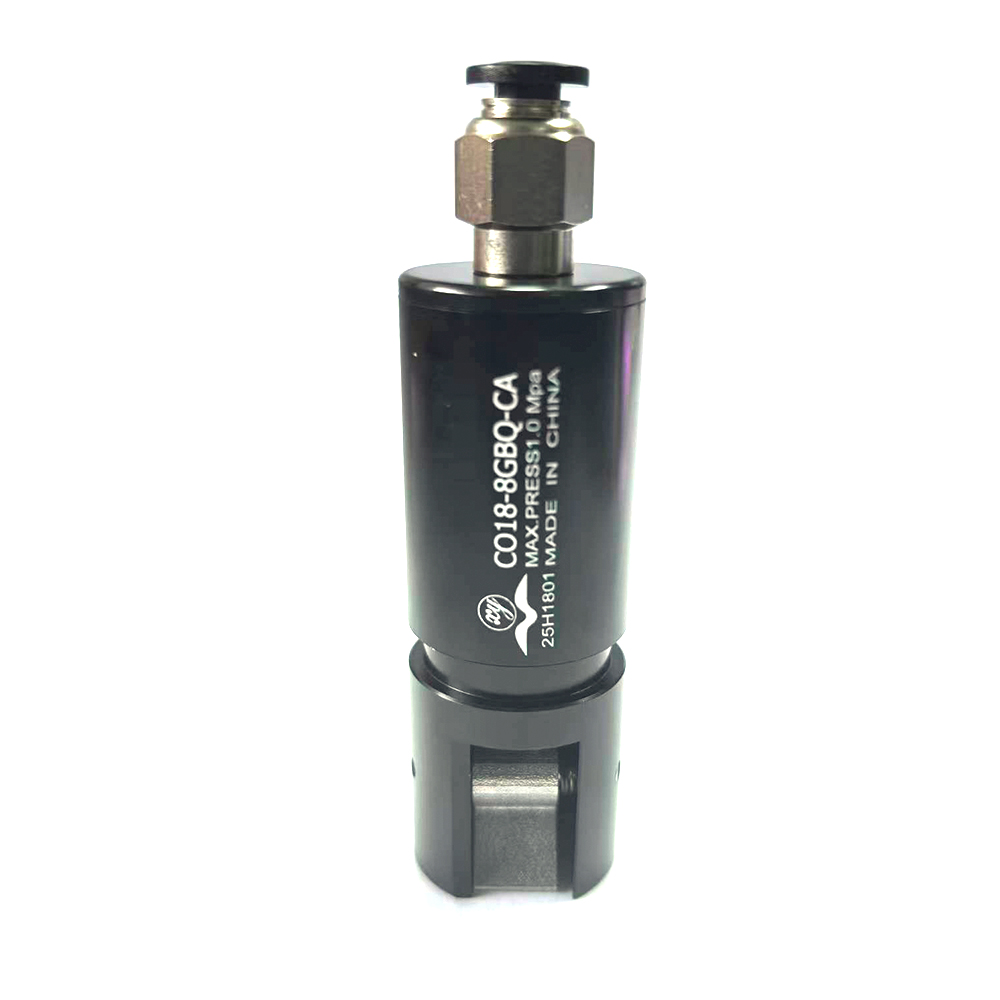

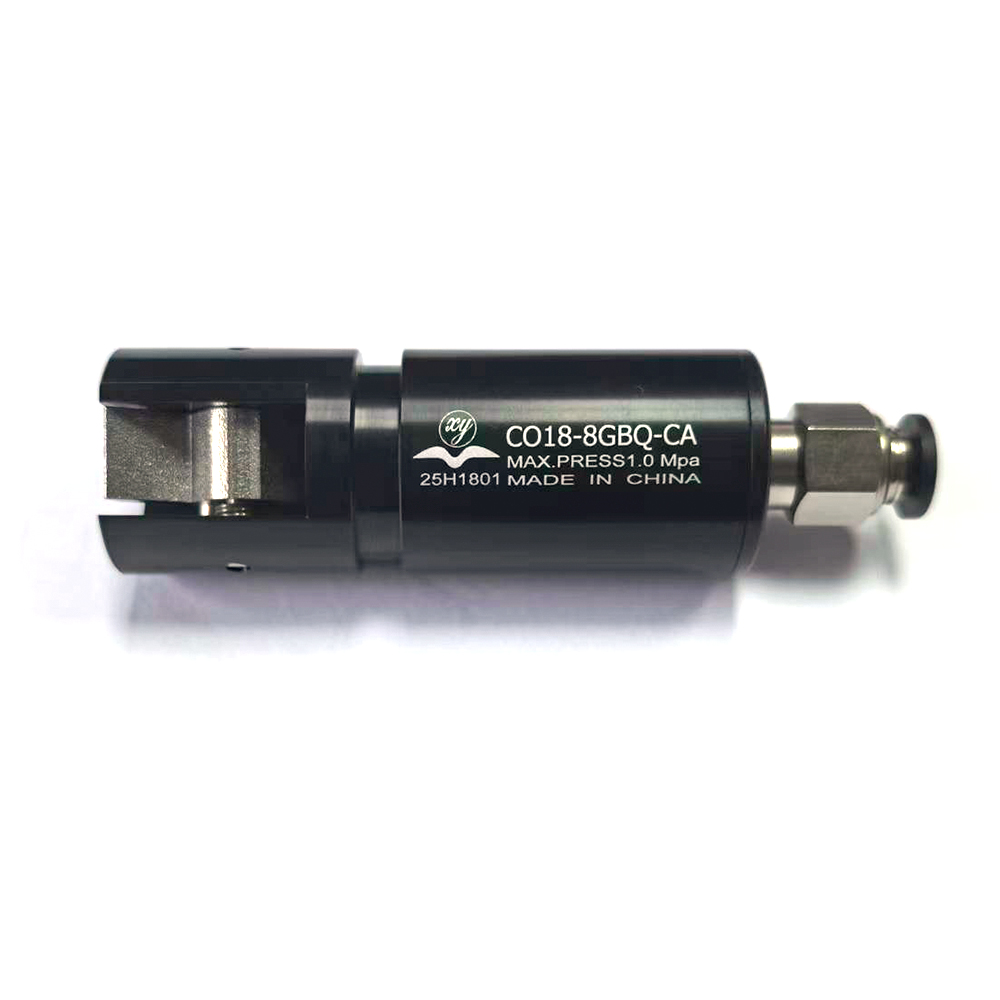

Prev：CO18-8GBQ-CA Aluminum Hook Cylinder
