Cylinder Model:
| Model | CO08-5GZ-A |
| Type | Piston Cylinder |
| Cylinder Body Shape | Cylindrical |
| Action Mode | Single-Acting |
| Outer Diameter(mm) | 10 |
| Bore Size(mm) | 8 |
| Hook Length（mm） | 5 |
| Cylinder Type | Hook Type |
| Cylinder Body Type | Xiyong Cylinder Cylindrical Body |
| Port | Single Port （∮3/4mm） |
| Quick Fitting | None |
| Cover Plate | None |
| Cylinder Body Material | Aluminum (Black Anodized) |
| Pressure Range | 0.15～1.0MPA |
| Operating Temperature | 0℃～70℃ |
Solenoid Valve Model:
| Model | Two-position two-way solenoid valve |
| Operating Temperature | 0-60°C |
| Valve Port Diameter | 1.0mm |
| Standard Voltage | DC24V |
| Power | 1.0W |
| Conductivity Rate | 100% |
| Response Time | Less than 10ms |
| Lifespan | < 5 million times |
| Connection Method | Wired |
| Working Medium | Air |
| Working Pressure | 0.15-0.7mpa |
| Working Flow | 6Bar：60L/min 5Bar：50L/min |
| Voltage Range | Rated voltage ±10% |
| Indicator Light | LED |
| Max Working Frequency | 30HZ |
| Insulation Class | Class H |
| Protection Level | IP65 |

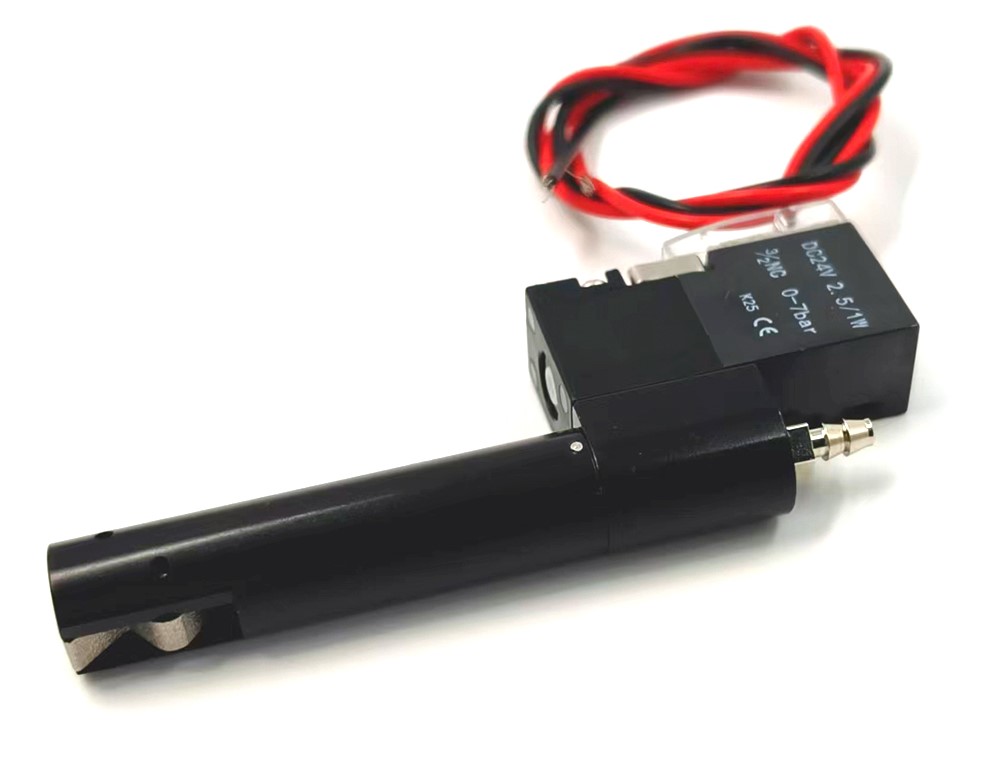

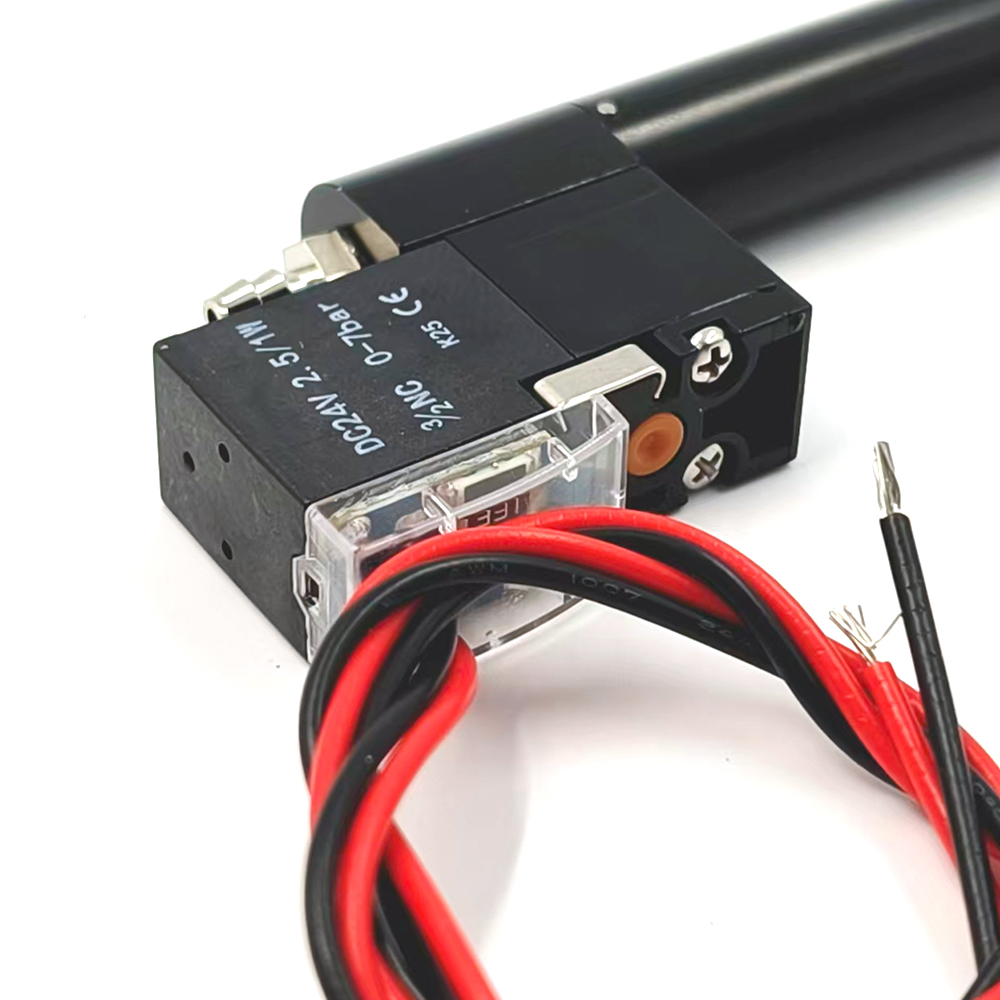

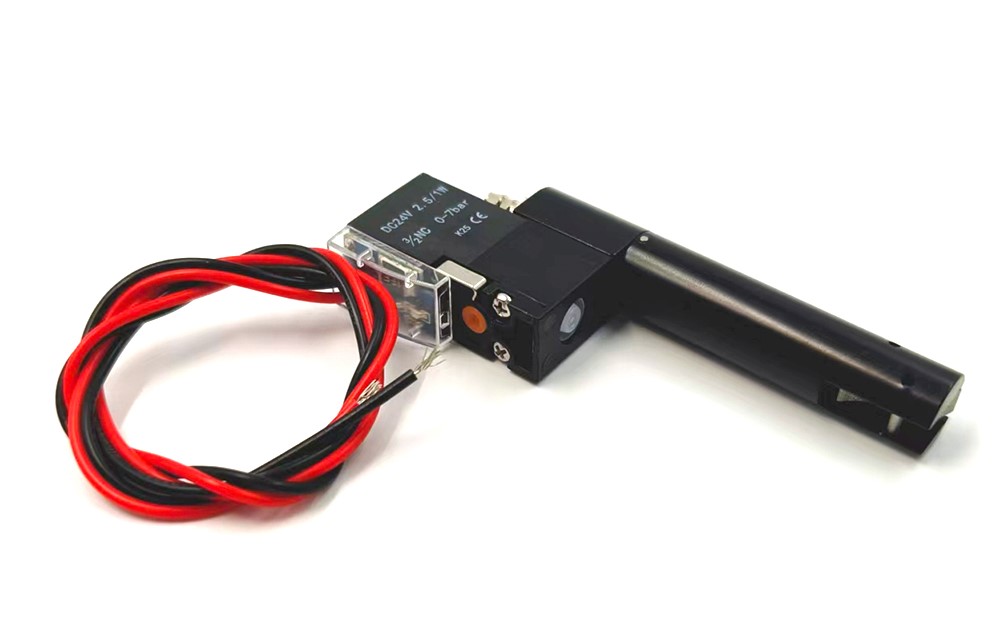

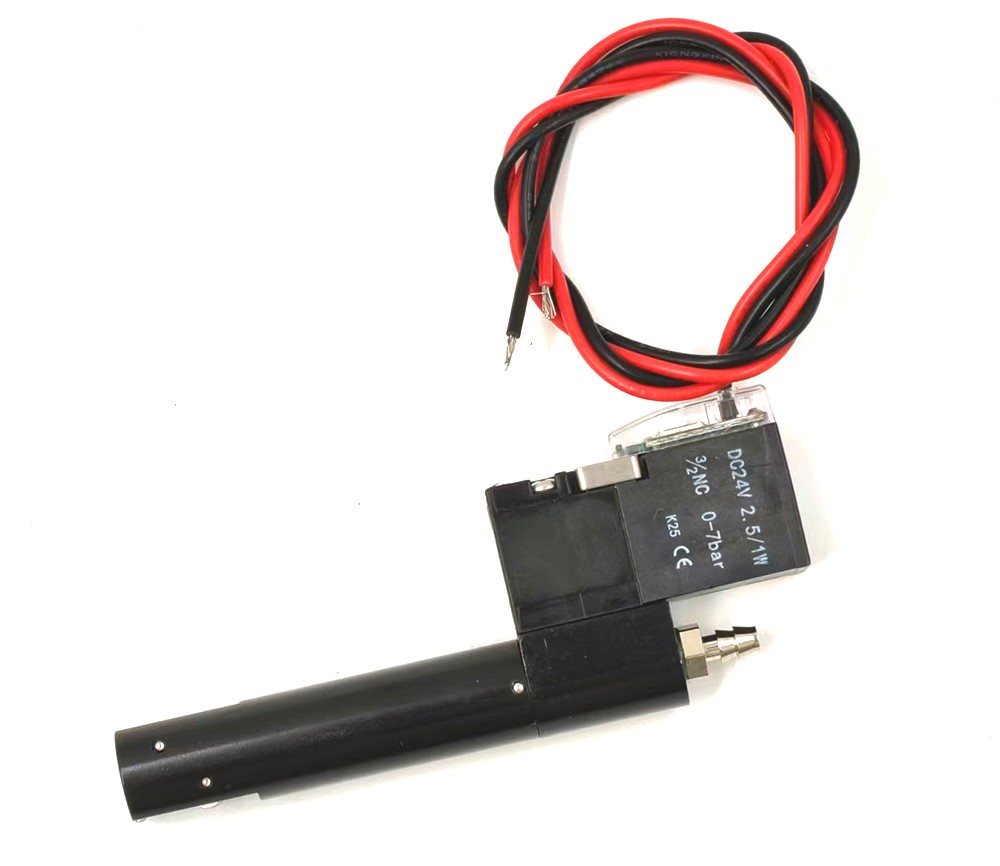

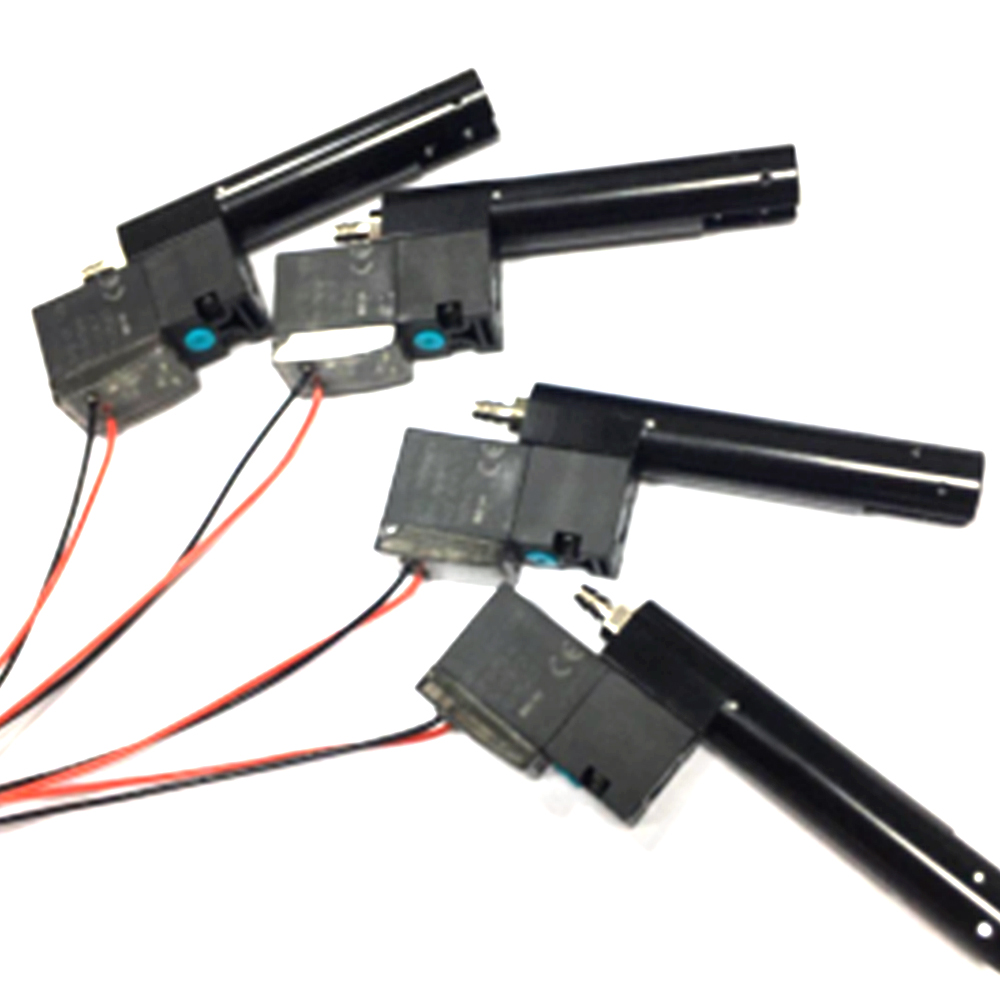

Product Image：
Tag：Cylinder
