Product Specifications：
| Product Type | DCFTJ-M3/5 5-position solenoid valve group |
| Working Temperature | -5-50℃ |
| Valve Port Diameter | 1.0mm |
| Standard Voltage | DC24v |
| Power | 2.5w/1w |
| Conductivity Rate | 100% |
| Response Time | 10m/s |
| Lifespan | 100 million times |
| Connection Method | Lead type/plug-in type |
| Working Medium | Air |
| Working Pressure | 0.15-0.7Mpa |
| Working Flow | P1-P2 16NL/min P1-P2 16NL/min P2-P3 23NL/min P2-P3 23NL/min |
| Voltage Range | Rated voltage ± 10% |
| Indicator Light | LED |
| Max Working Frequency | 30HZ |
| Insulation Class | Class H |
| Protection Level | IP50 |

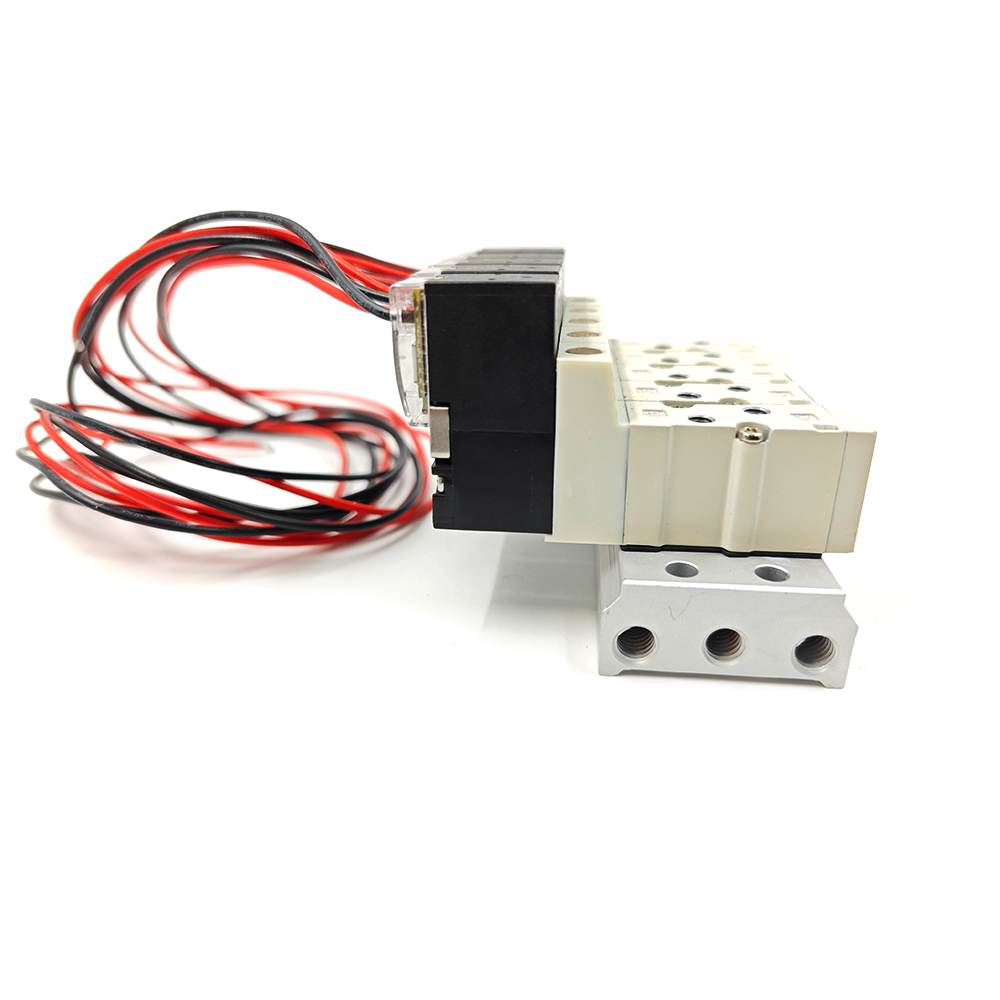

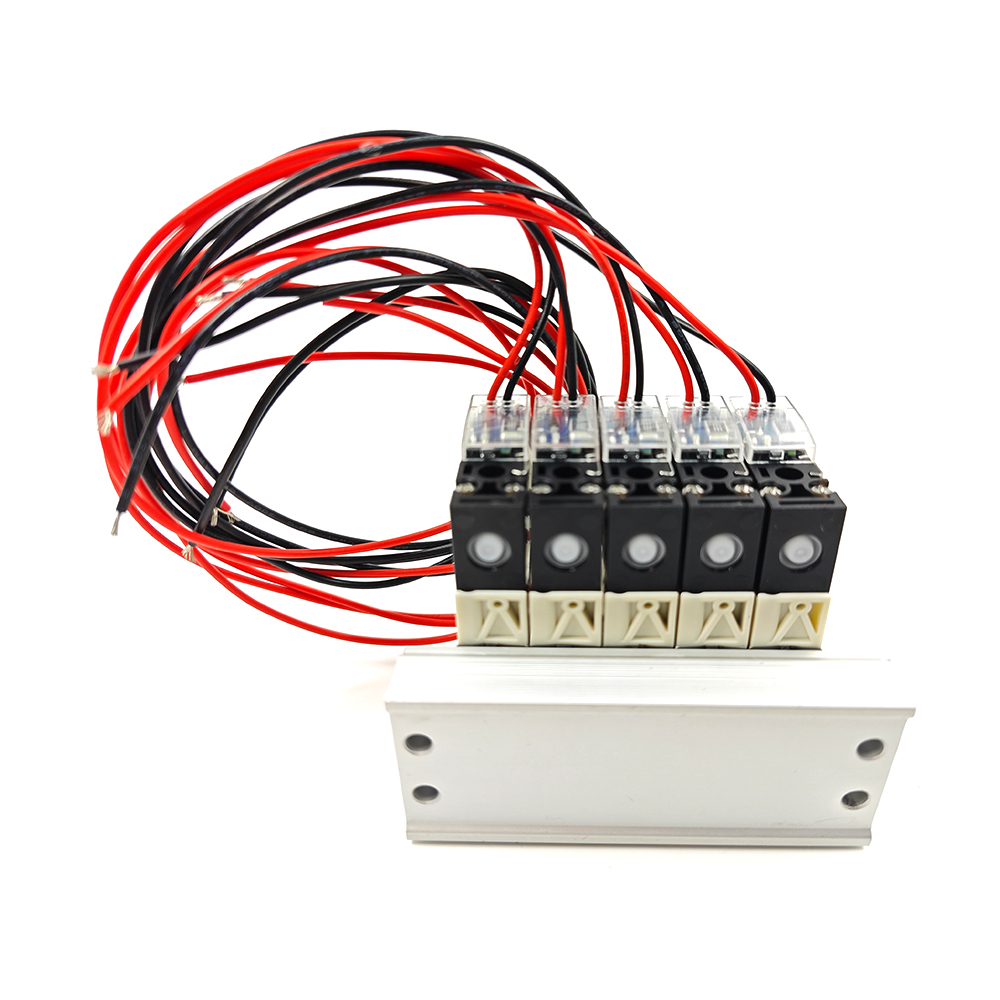

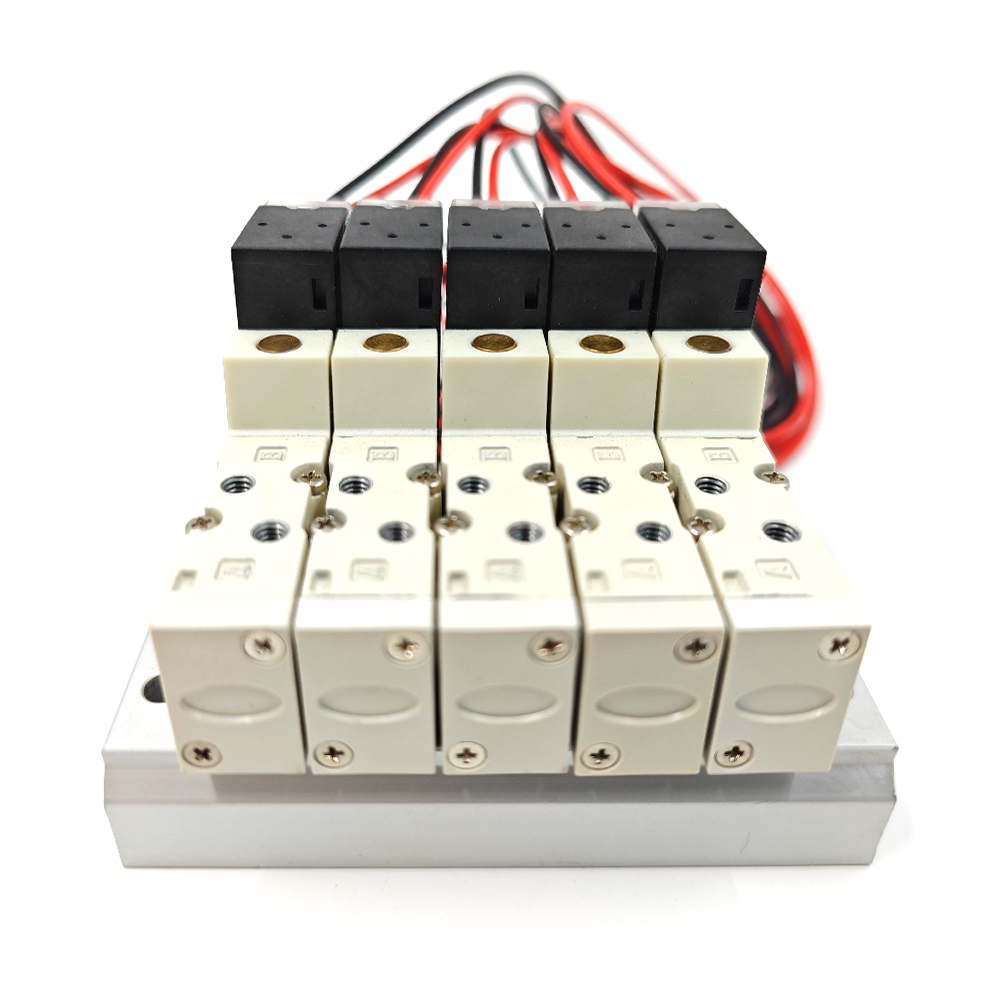

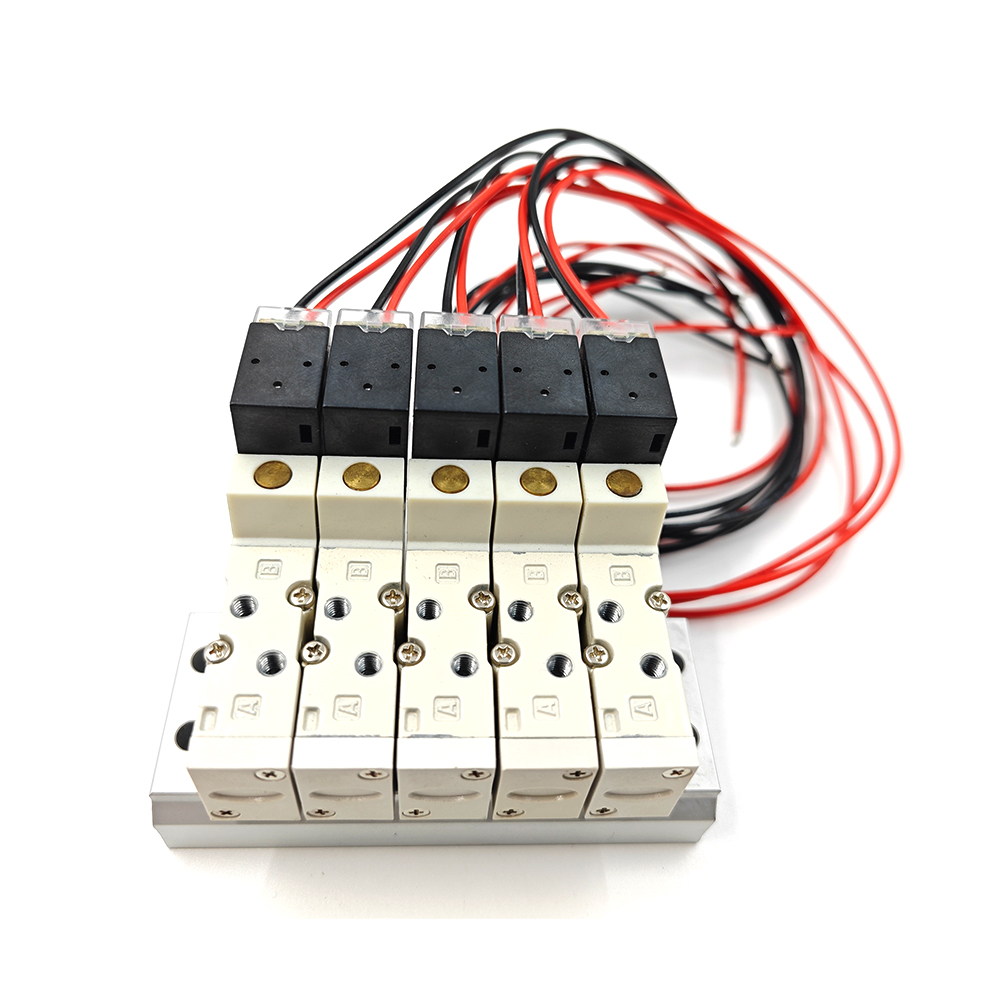

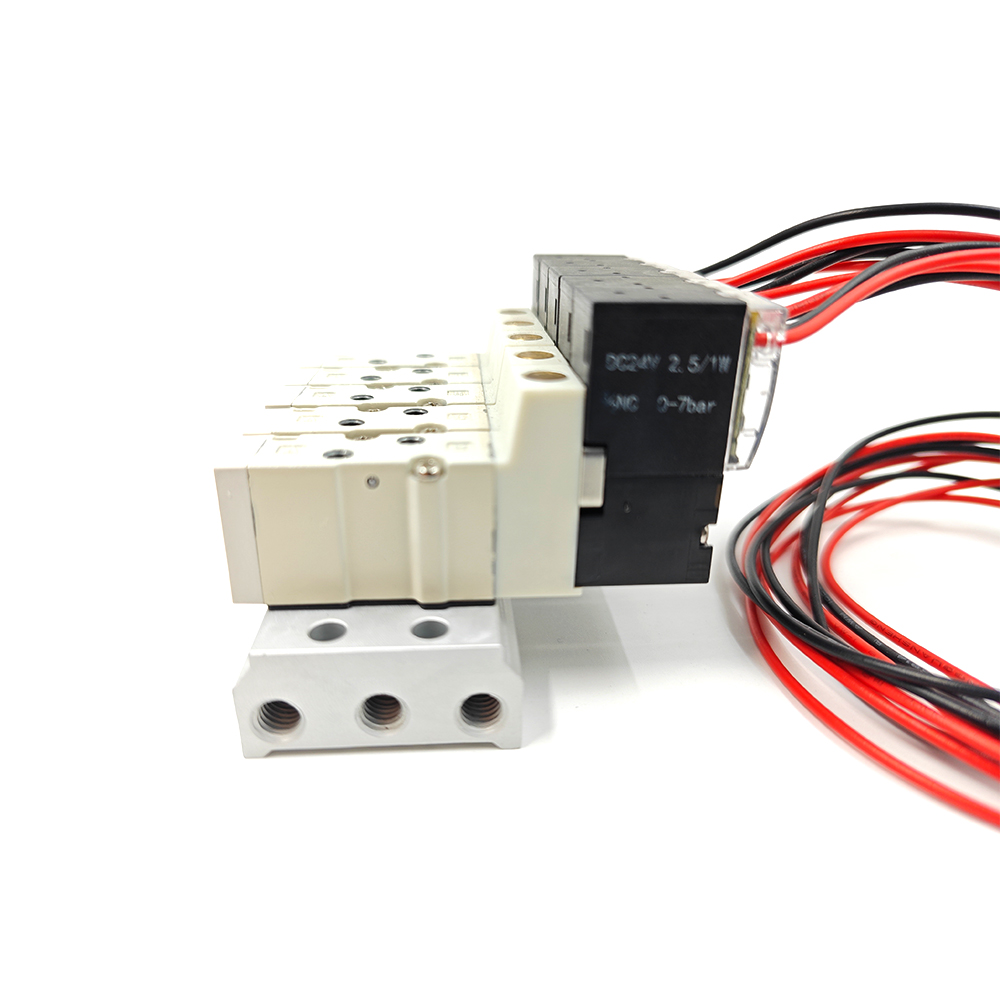

Product Image：
Tag：solenoid valve
