Product Specifications：
| Product Type | Two-position three-way solenoid valve |
| Working Temperature | -5–60 °C |
| Valve Port Diameter | 1.0 mm |
| Rated voltage | DC 24 V |
| Power | 1.0 W |
| Conductivity Rate | 100% |
| Response Time | <10 ms |
| Lifespan | >50 million cycles |
| Connection Method | Lead wire |
| Working Medium | Air |
| Working Pressure | 0.15–0.7 MPa |
| Voltage Range | ±10% of rated voltage |
| Indicator Light | LED |
| Max Working Frequency | 30 Hz |
| Insulation Class | H |
| Protection Level | IP50 |

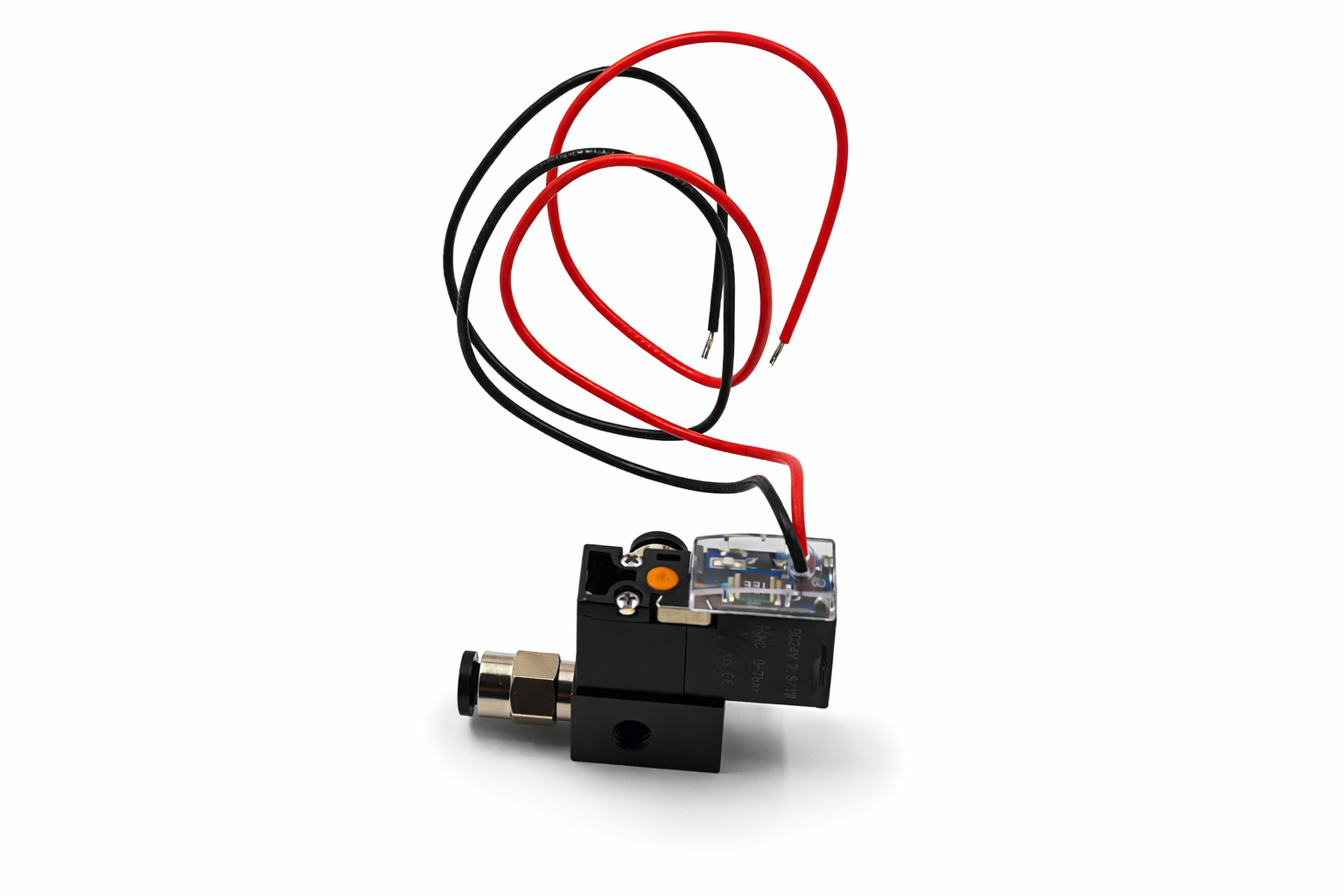

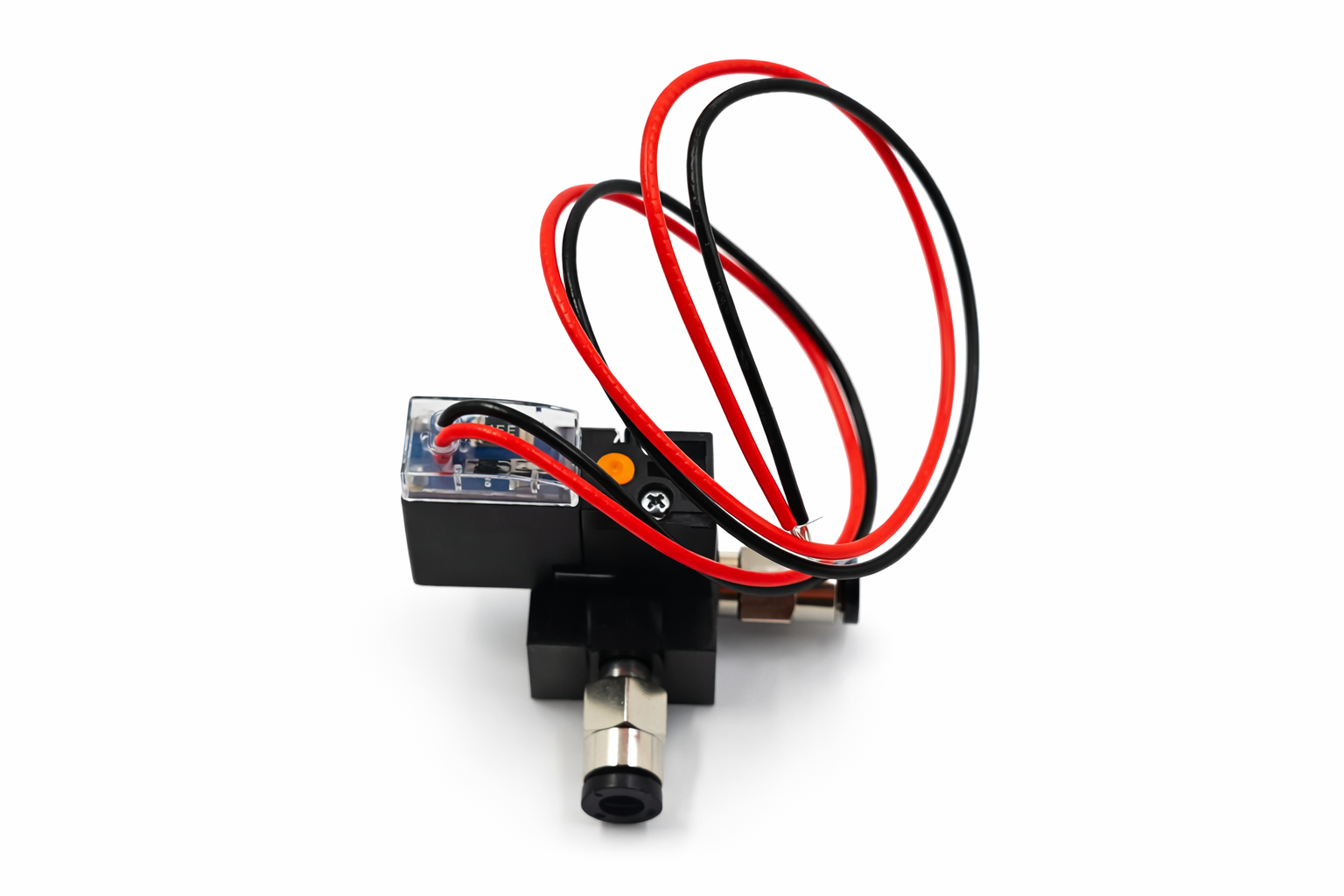

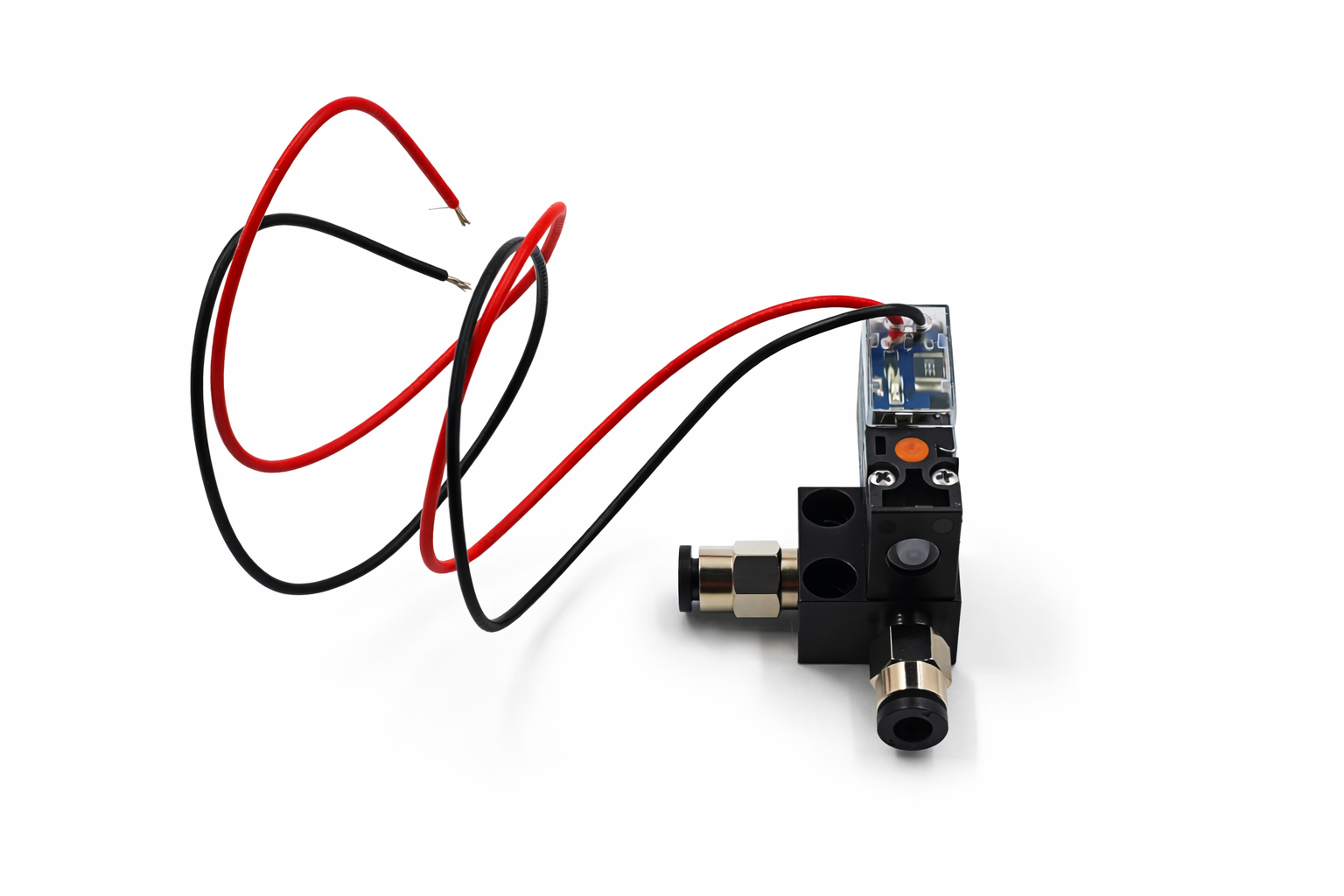

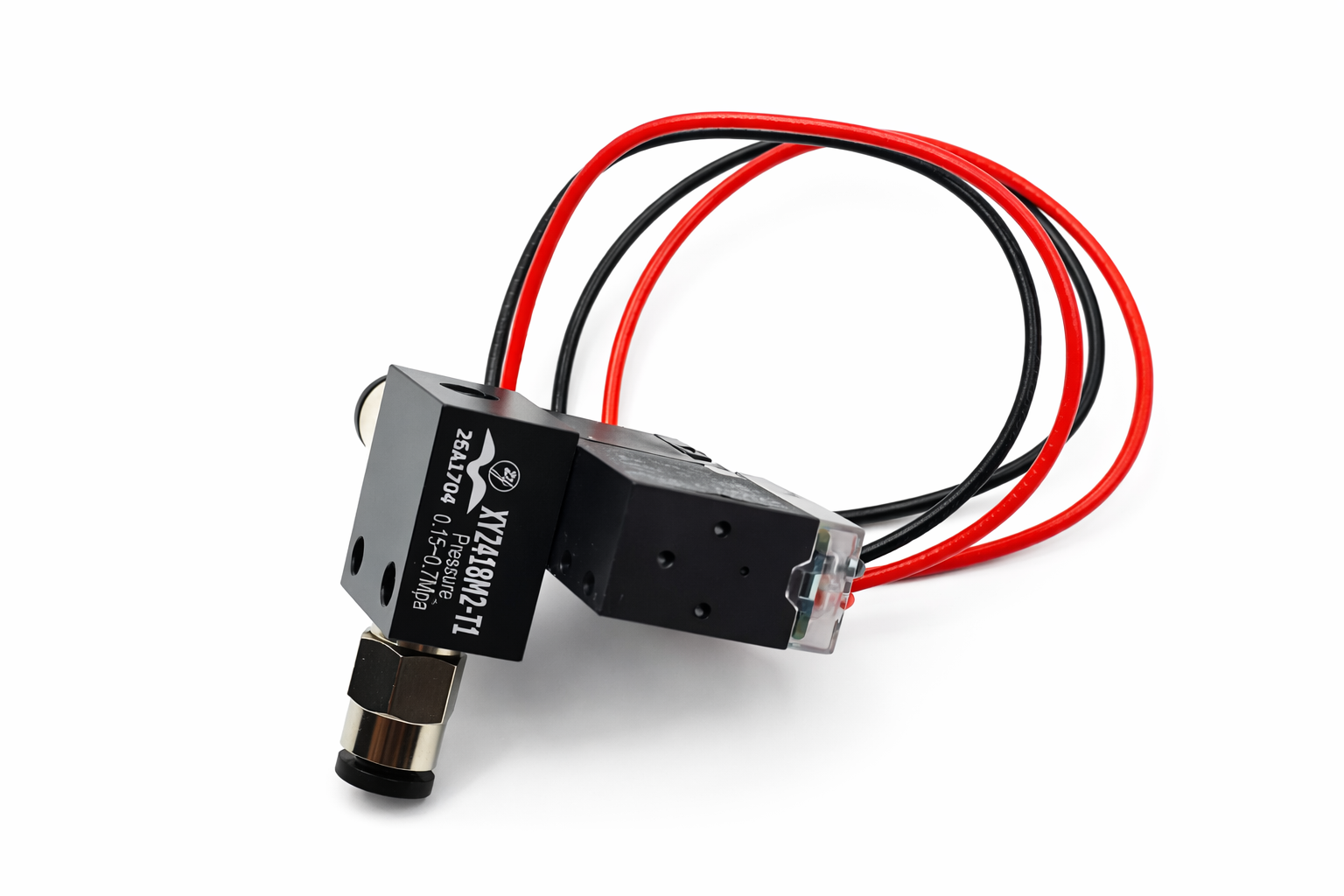

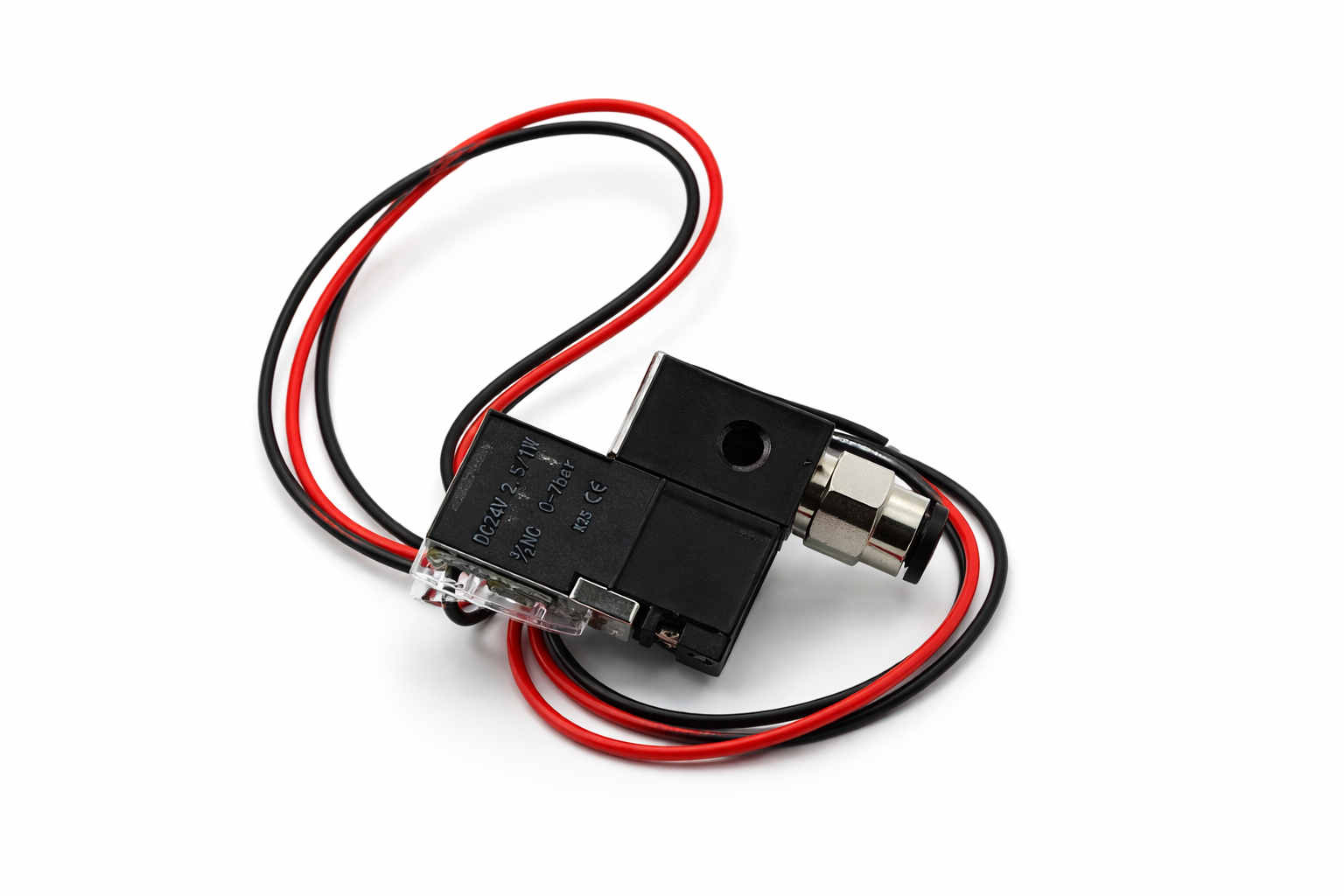

Product Image：
Tag：solenoid valve
