Product Specifications：
| Product Type | Two-position four-way solenoid valve |
| Working Temperature | 0-60℃ |
| Valve Port Diameter | 1.0mm |
| Standard Voltage | DC24V |
| Power | 1.0W |
Conductivity Rate | 100% |
| Response Time | Less than 10ms |
| Lifespan | > 5 million times |
| Connection Method | Wired |
| Working Medium | Air |
| Working Pressure | 0.15-0.7mpa |
| Working Flow | 6Bar: 60L/mi 5Bar: 50L/min |
| Voltage Range | Rated voltage ±10% |
| Indicator Light | LED |
| Max Working Frequency | 30Hz |
| Insulation Class | Class H |
| Protection Level | IP65 |

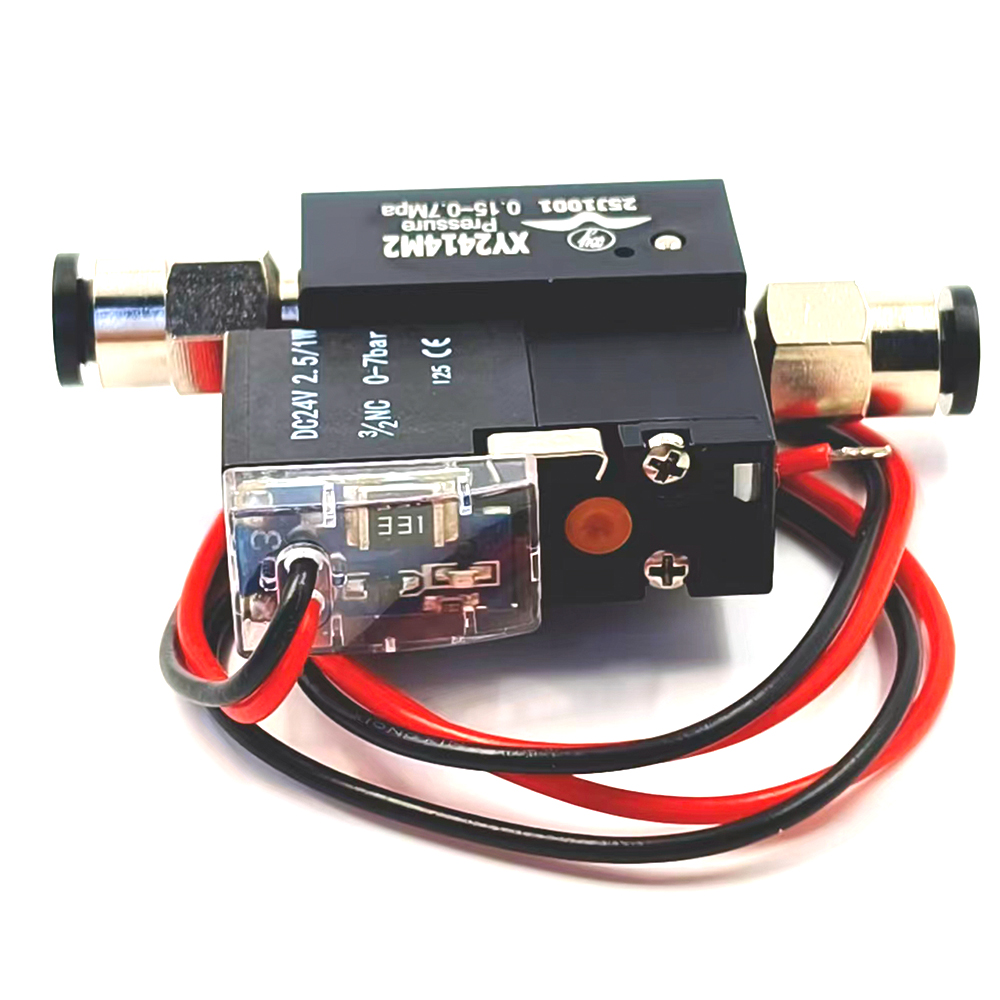

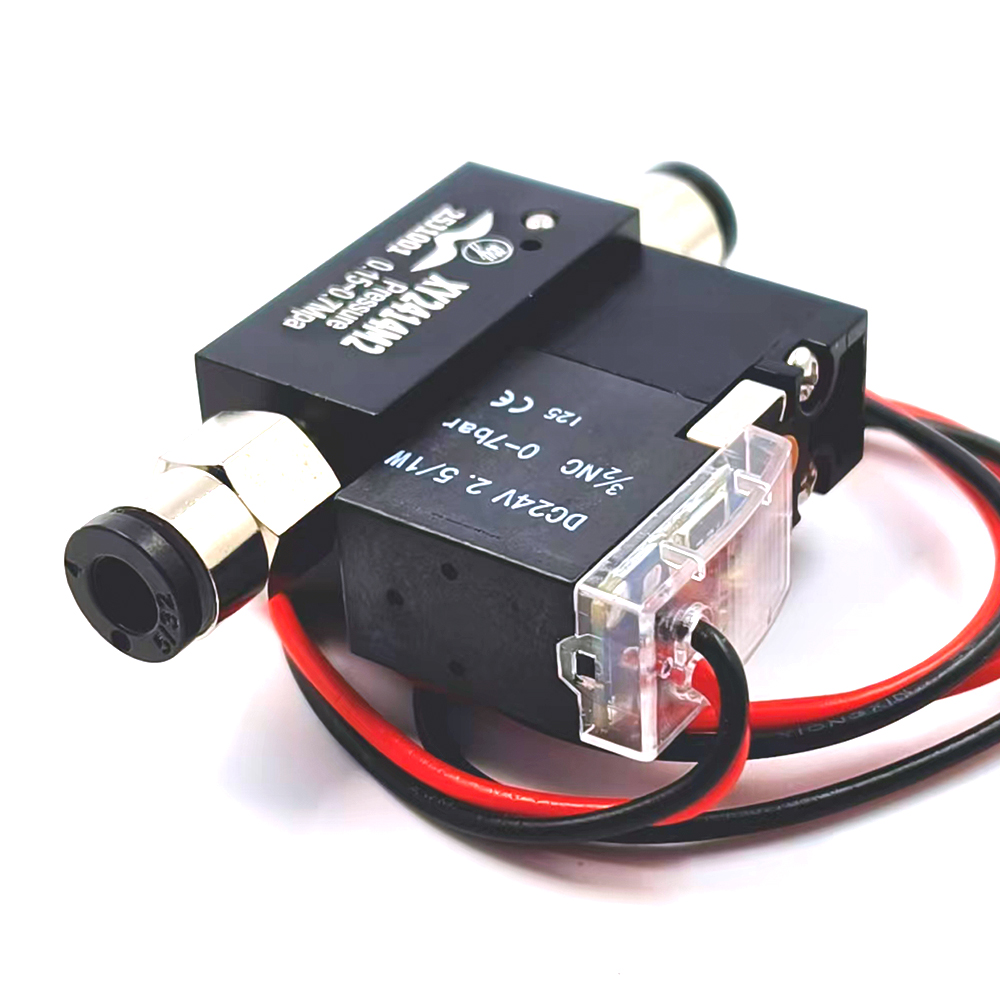

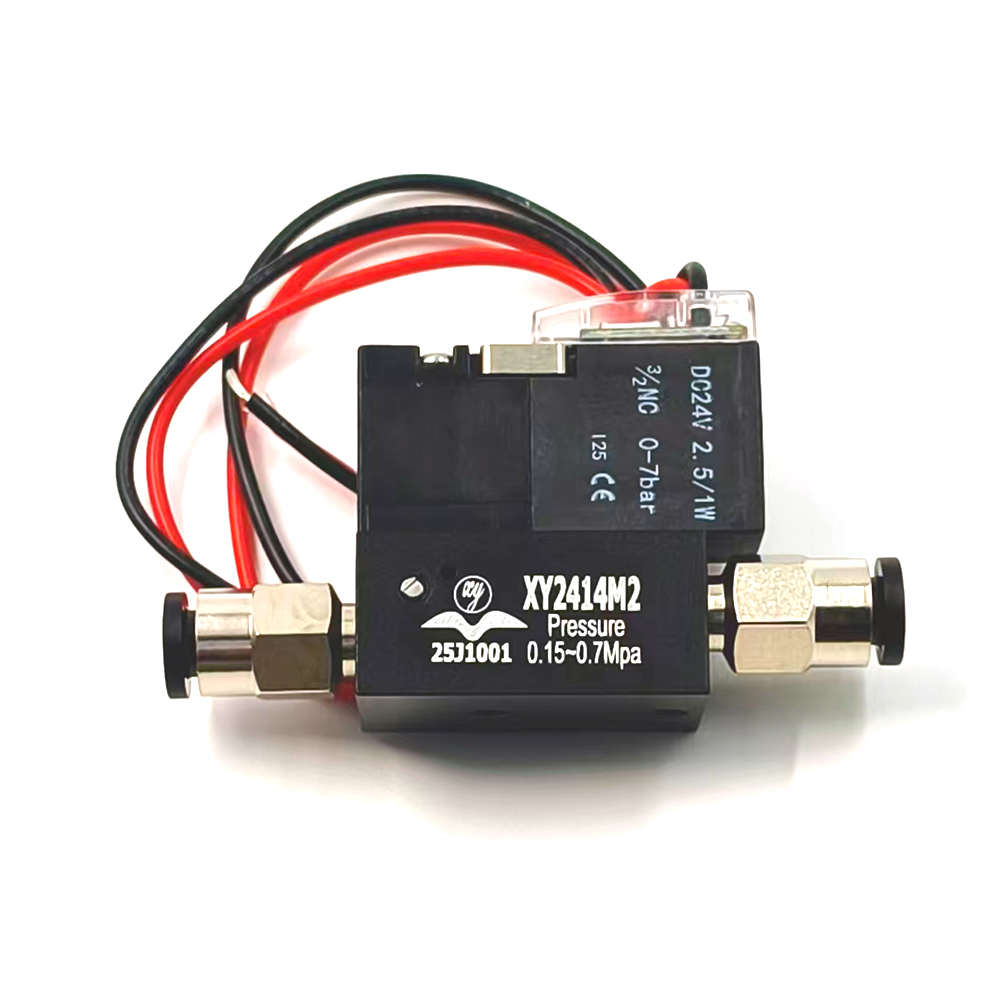

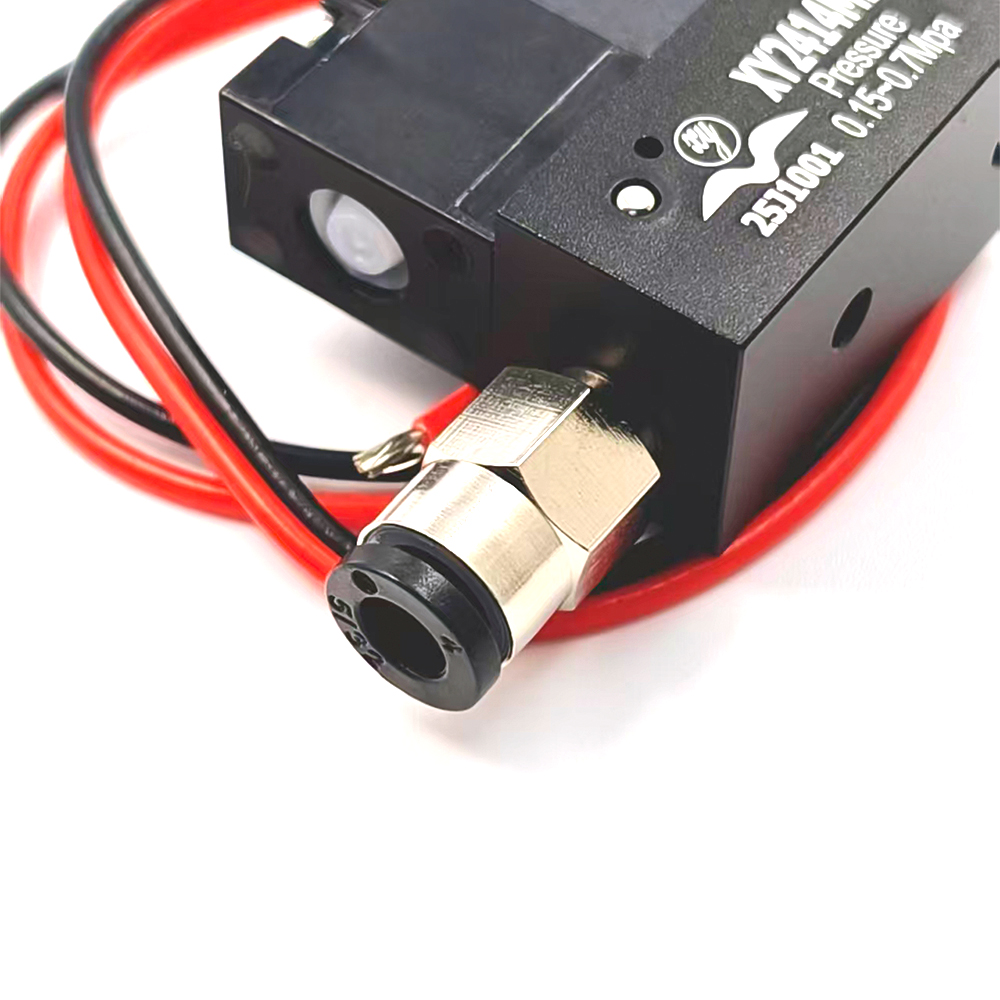

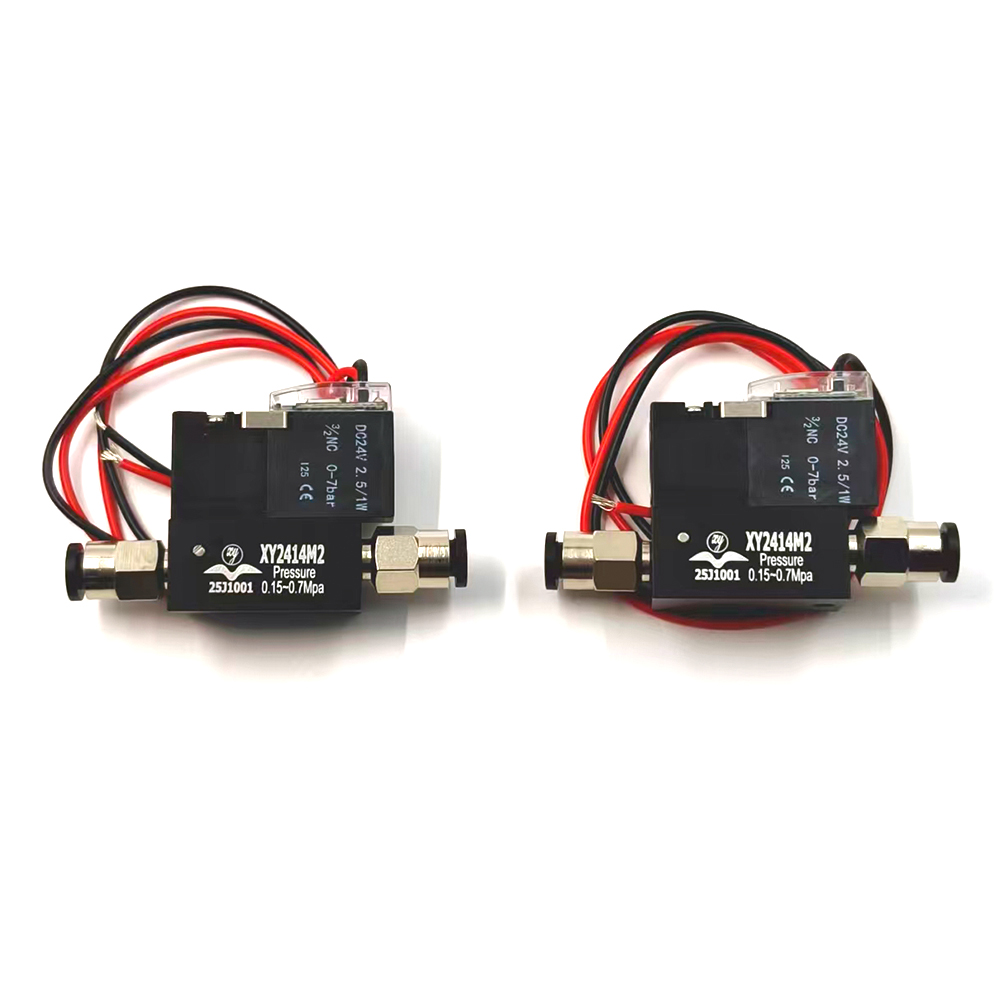

Product Image：
