Product Specifications：Product Type Electromagnetic valve group Working Temperature 0-50℃ Valve Port Diameter 1mm Standard Voltage 24v Power 2.5w/1w Conductivity Rate 100% Response Time 10m/s Lifespan 100 million times Connection Method Lead type/plug-in type Working Medium Air Working Pressure 0.15-0.7Mpa Working Flow P1-P2 16NL/min P1-P2 16NL/min
P2-P3 23NL/min P2-P3 23NL/minVoltage Range Rated voltage ± 10% Indicator Light LED Max Working Frequency 30HZ Insulation Class Class H Protection Level IP50

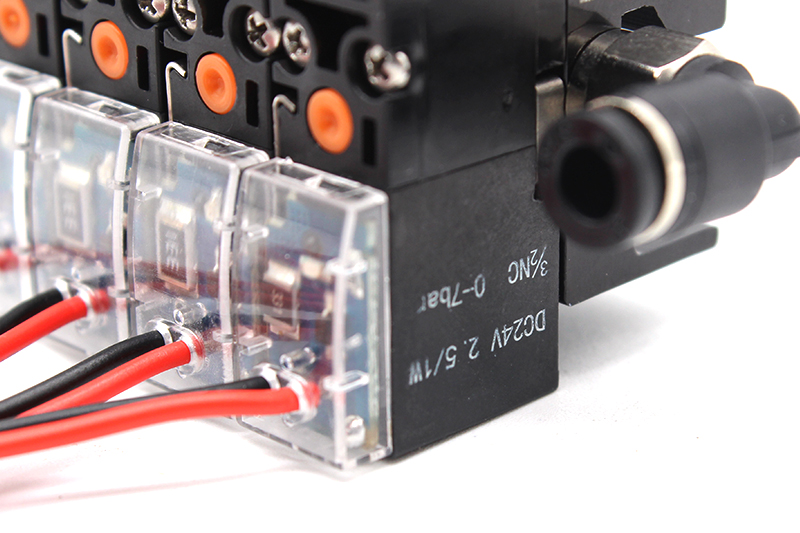

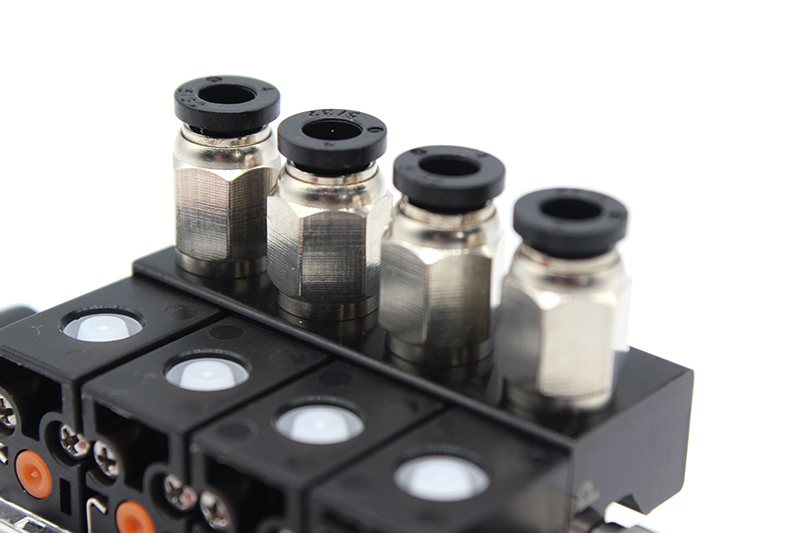

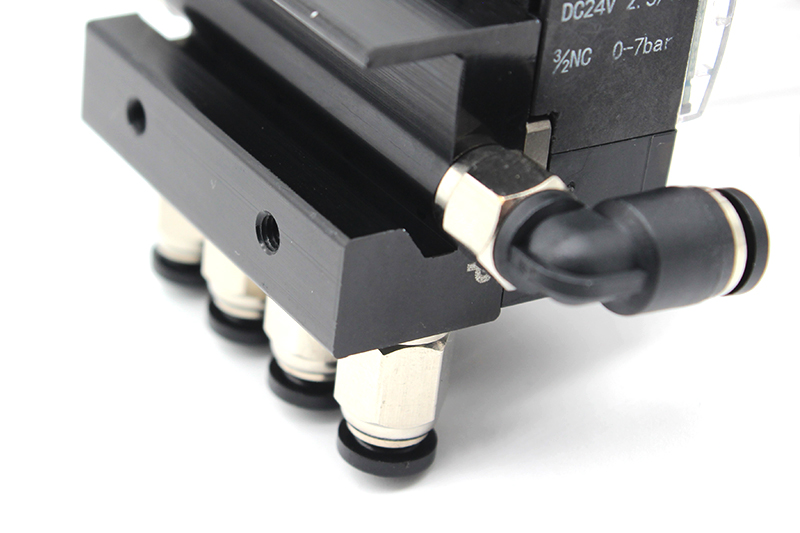

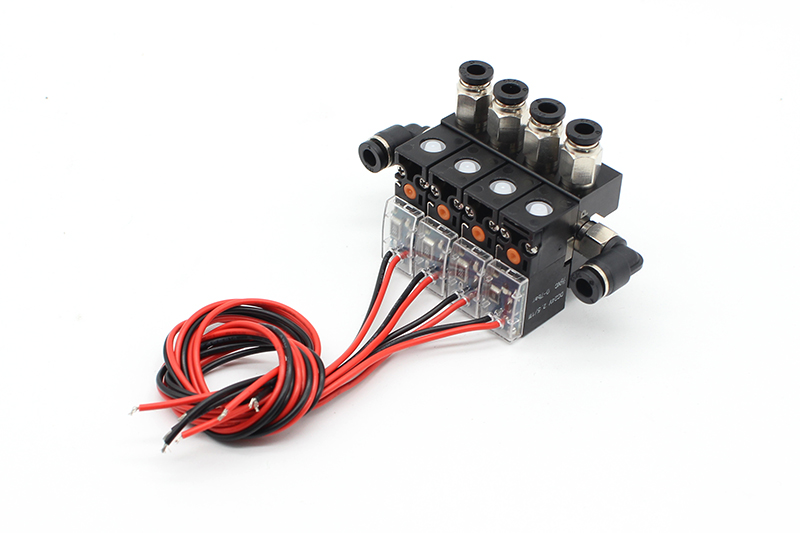

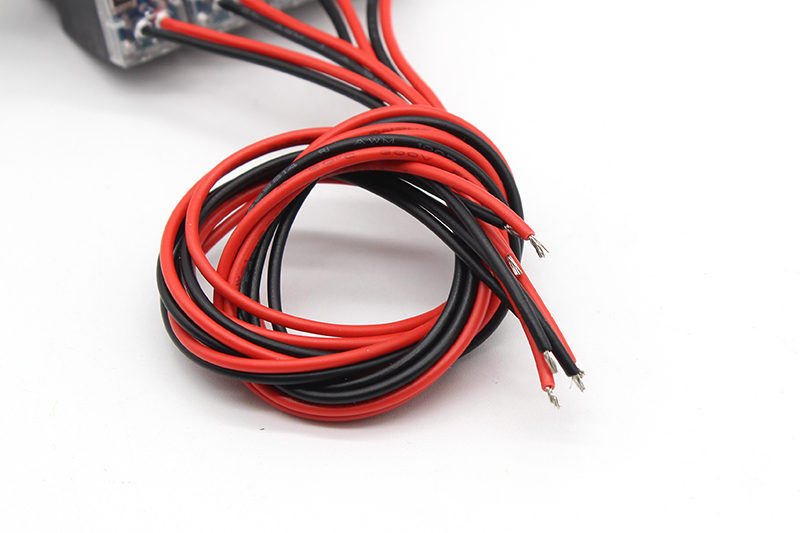

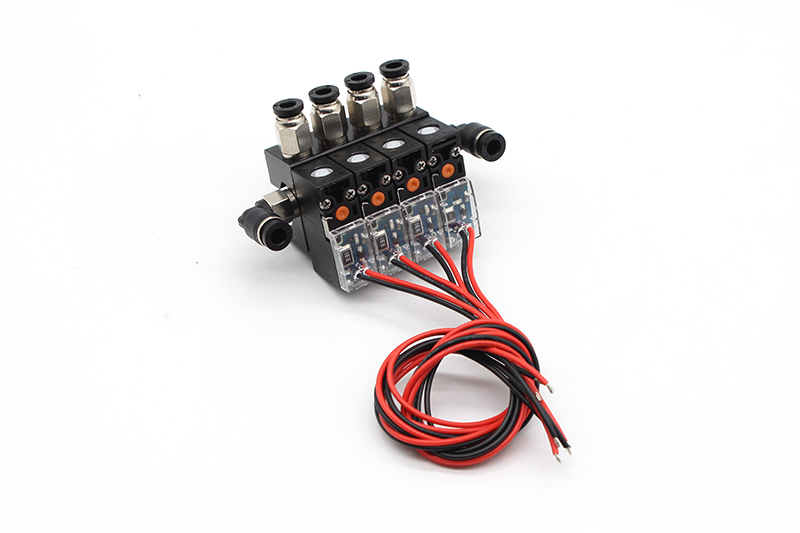

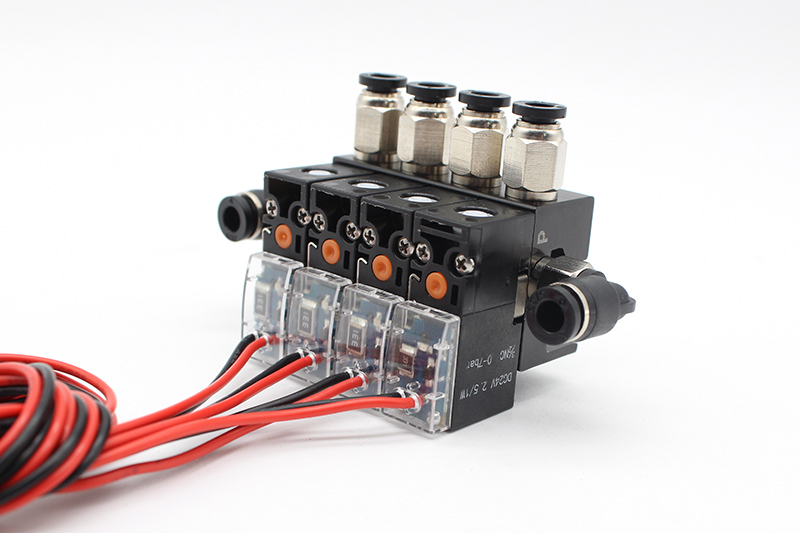

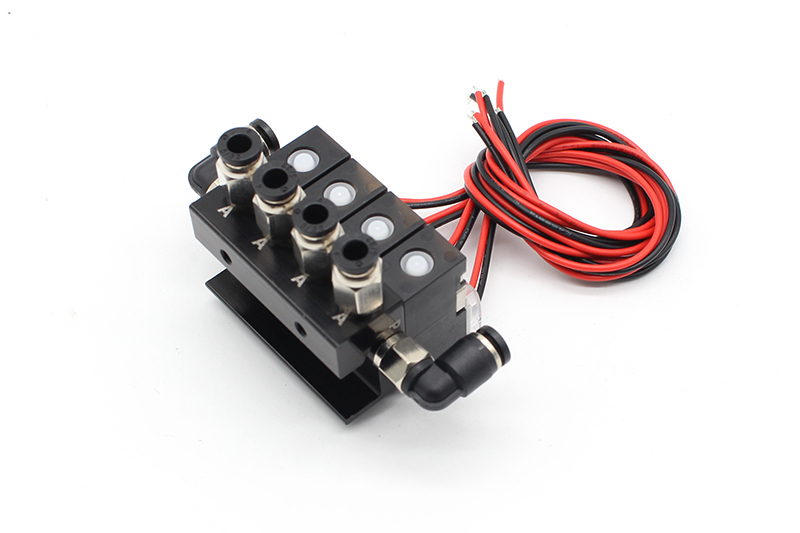

Product Image：
