Product Model Reference：
Product Specifications：
| Model | CO12-5GB-Pw-R |
| Type | Piston Cylinder |
| Cylinder Body Shape | Cylindrical |
| Action Mode | Single-Acting |
| Outer Diameter(mm) | 16 |
| Bore Size(mm) | 12 |
| Hook Length(mm) | 5 |
| Cylinder Type | Hook Type |
| Cylinder Body Type | Xiyong Cylinder Standard Body |
| Port | Ports Φ4mm |
| Cover Plate | yes |
| Cylinder Body Material | High-hardness Plastic |
| Pressure Range | 0.15～1.0MPA |
| Operating Temperature | 0℃～70℃ |

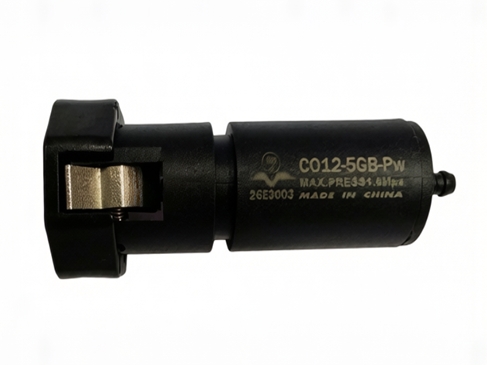

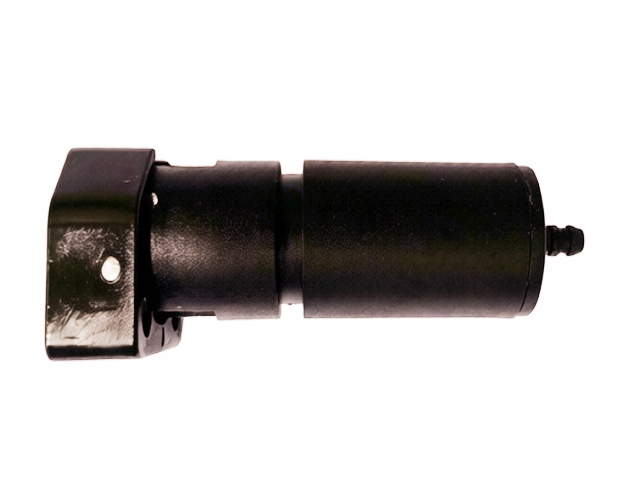

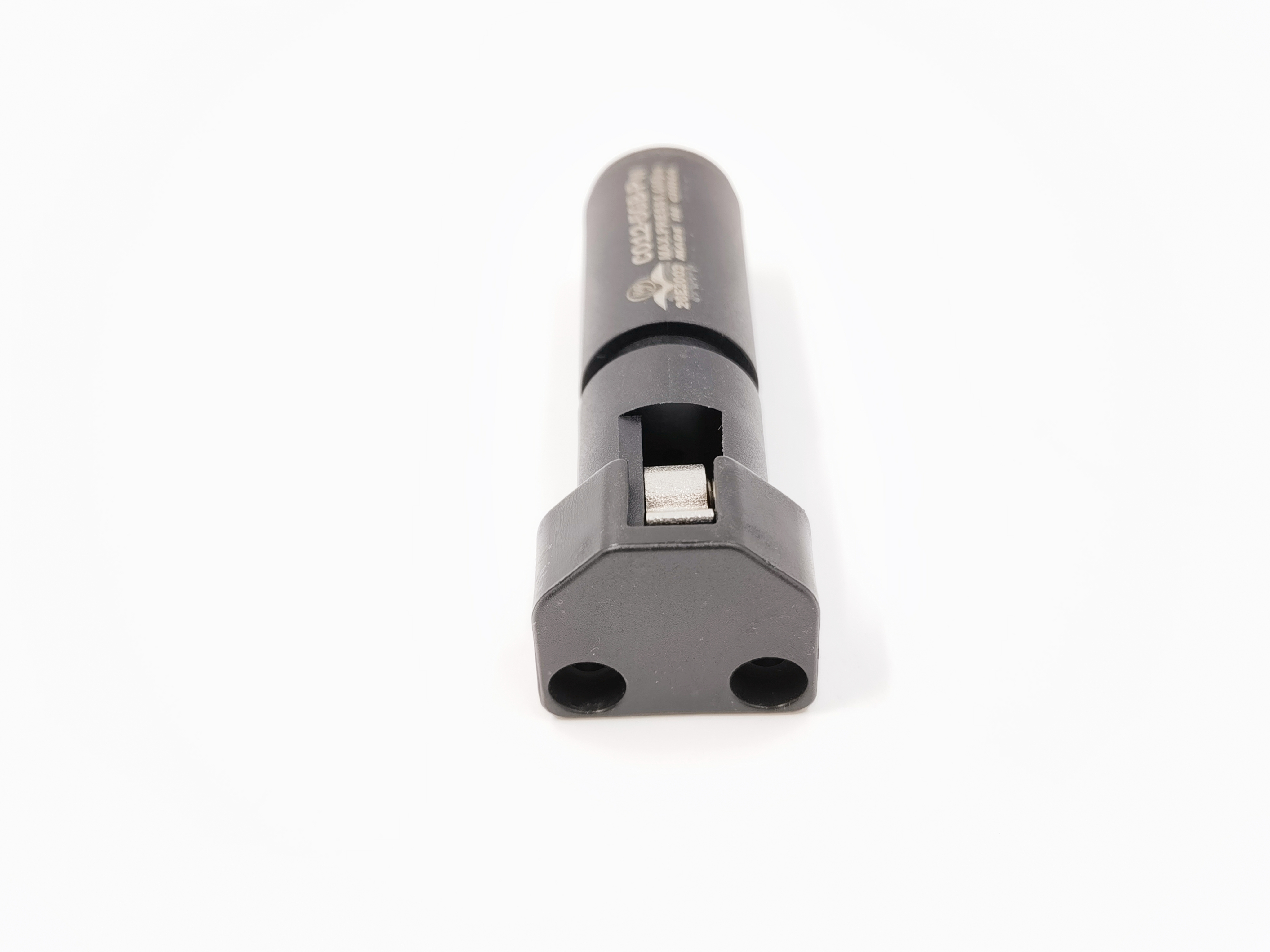

Product Image：
