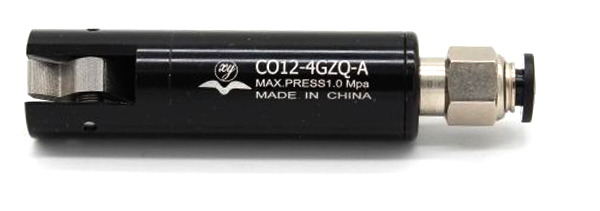

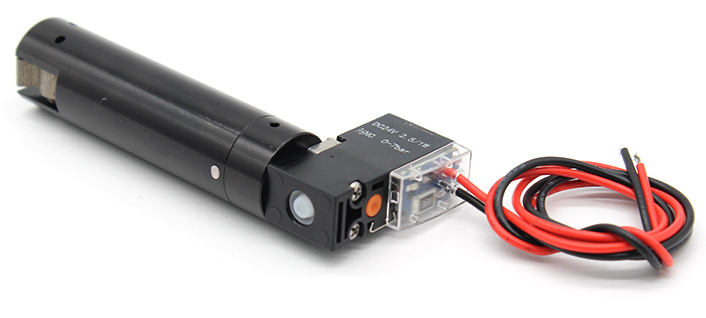

1.Wire harness claw cylinder
The continuity of the air circuit will activate the hooks on the cylinder to press down on the connector for continuity testing

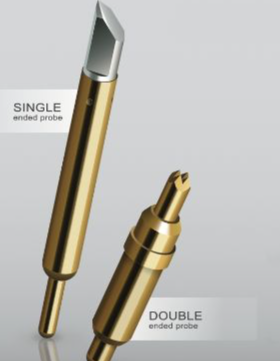

2. Metal probe
The outer layer of the probe is gold-plated, and the spring part in the probe is crucial for detecting conductivity when in contact with the car wiring harness. The tail of the probe is soldered together to form a whole day.

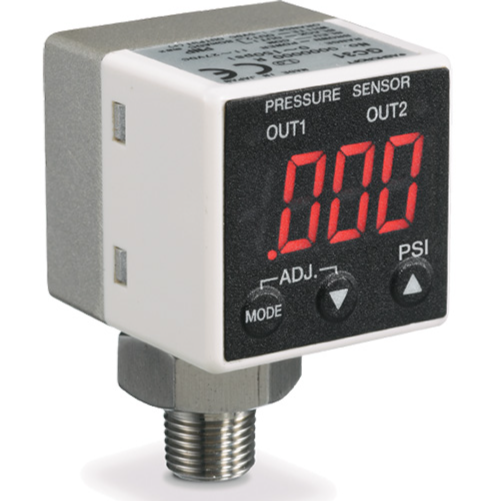

3. Digital pressure switch
It is usually installed at the bottom of the module for testing the airtight air path, which is an indispensable component of a module fixture.

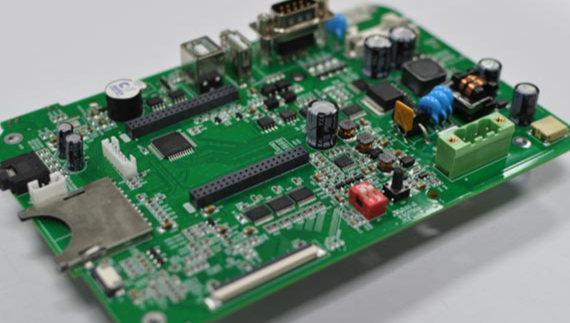

4. Circuit board
Control each functional part of the module through the circuit board, such as the airtight solenoid valve indicator light, etc.
The circuit boards of different modules may also vary, and some circuit boards are even the size of fingers.
The general industry uses PCB boards differently, so few circuit boards are universal, and they will be customized according to the functions they need.

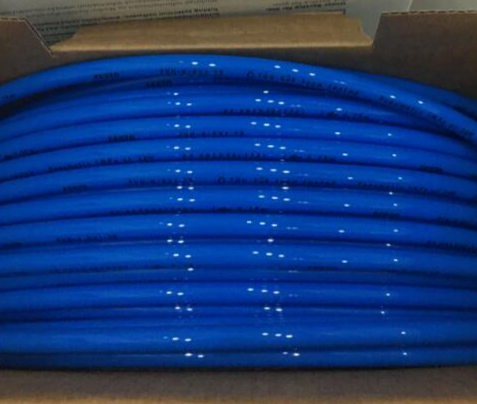

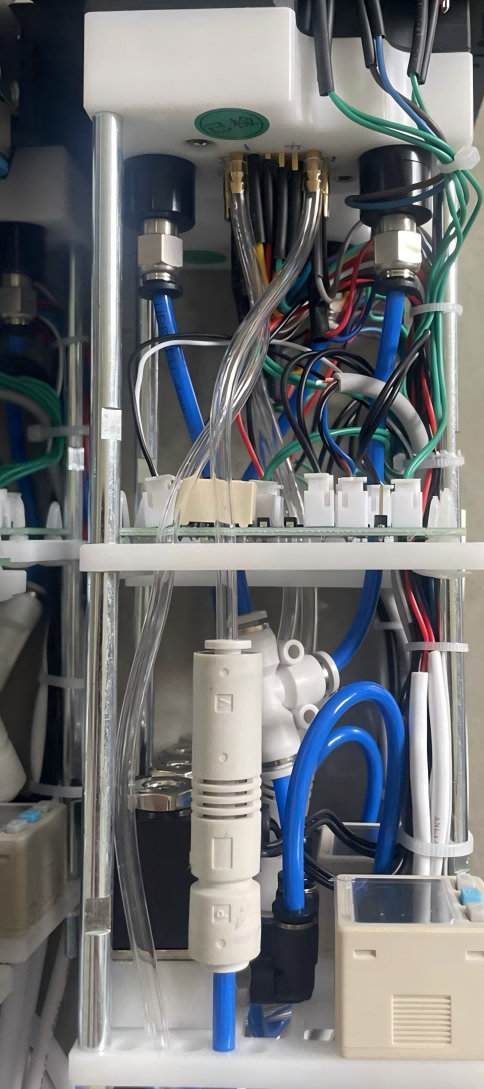

5. Tracheal tract
The trachea is a vascular level presence that controls the central nervous system of the test bench, whether in the test bench or the test module.
The trachea is a blood vessel, but it also troubles many engineering designers. The launch event of the trachea affects the installation and layout of various components in the module.
Thus, only by reducing the size of other components can the distribution of trachea and wires be solved. However, Xiyong Company has developed a product that can reduce the layout of the trachea.
It is also possible to reduce the number of components and minimize the use of other parts, but this product needs to see the reasonable use of other wiring harness test bench designers.
